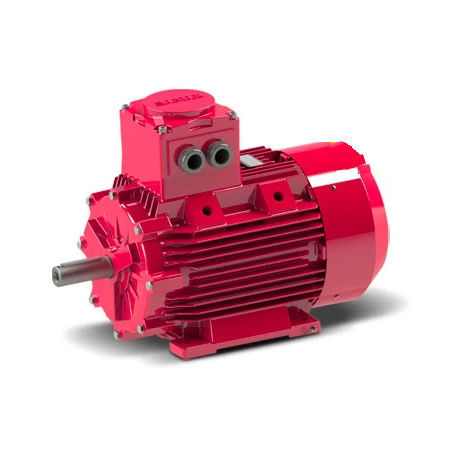

Explosion-proof motor

three-phaseasynchronousIP65

• It is a 3-phase, squirrel-cage, asynchronous electric motor group categorized as 71-80-90 S -90 L – 100 L – 112 M -132 S -132 M -160 M -160 L -180 M -180 L -200 L -225 MS – 250 M according to IEC standards, and designed to meet the criteria specific to the relevant types. It is electrically designed for 2-4-6 or 8 poles that can be operated with direct supply. • In motors designed in flameproof Class D structure, casing components are cast iron. • Designed to work in flammable and explosive dust and gaseous environments, the product has a body, front cover, rear cover, terminal box, terminal box cover and gland-blind plug entries, as well as the stator and shaft rotor group that make up the motor. The terminal group featuring electrical connections and cables to run the motor is located in the terminal box. • The order of installation has been prepared in B3 and B35 structure. • Ex-Proof motors in the series can be produced in F or H insulation classes upon request. While Class F insulation together with the copper and insulation varnish that make up the stator withstand temperatures up to 155 degrees according to the relevant standards, this resistance limit is defined as 180 degrees for Class H insulation. Insulation resistance is not related to maximum surface temperature. • The end user must not paint the motor. • Making the ground connections is the responsibility of the end user. • Motors are at nominal operating values of 220/380 380/400 400/690 50 Hz. • Motors are designed as II 2G Exd IIC T4 Gb for gaseous environment and II 2D Extb T135 Db for dusty environment.
