Robotic palletising system

handlingfor palletfor tires

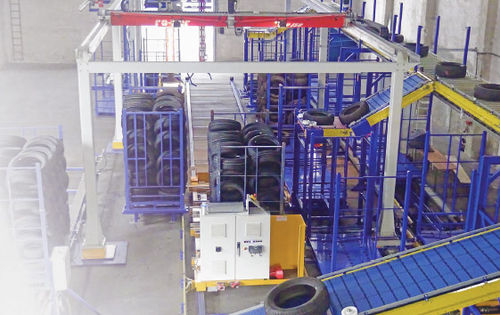

Imagine a fully automatic take-over of all tyres out of the daily production of a tyre plant into your logistics warehouse. 24/7/365 and that without personnel. Our plant scans the tyres and assigns them unmixed to a pallet. Portal robots then palletise the tyres automatically into a rick-rack pattern (fish bone) or stove pipe (tyre stack) storage. On request, the goods are also marked or glued with a printed label prior to palletising. A completely loaded pallet is automatically exchanged with an empty pallet. The full, outgoing pallet is labelled; in parallel with that, all the information of the delivery (quantity, pallet and date) are sent electronically to your ERP system. The modular design of our plant is extremely maintenance-friendly and its dimensions can be individually adjusted to your requirements. In the execution of this project we collaborated in a close network with strong partners – ro-ber and FAG – who can also draw on years of experience in the fields of robotics, automation and pallet changing modules. Fully automatic palletising All tyres are palletised unmixed; during the process, either palletising in rick-rack pattern (fish bone) or stove pipe (tyre stack) storage. Subsequently, an automatic pallet change will take place Continuous production, 365 days Production runs 24/7/365 and operation is carried out by 1 Person per shift / operation without personnel EC Directive “Load Handling Regulation” Helps you comply with the EC Directive on Load Handling Regulation, no health hazards for manual handling of loads; no “red work places”
