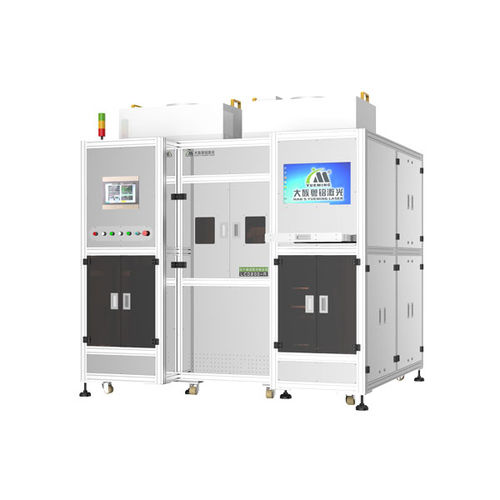

Laser cleaning system LCD200-A

automaticfor surface treatment

Features 1.Glue removal software automatically adapt to matching circuit, high-resolution CCD for automatic positioning; 2.No-contacting positioning processing for no pollution, no damage to materials; 3.Lower operating cost, convenient maintenance, no consumables, automatic operation, saving time and effort; 4.Stable performance on CCD chip’s glue cleaning (micron accuracy), no damage on substrate; 5.Adopts coaxial vision positioning technology, visual programming help to achieve WYSIWYG processing method; 6.Mirror stainless steel cover, efficient fume filtering system, work properly in dust-free workshop; 7.Built-in smoke and dust purifier to collect smoke and dust during work to achieve zero pollution and zero emission; 8.Automatic loading and unloading system, less labor cost. Technical Parameter Model : LCD200-A Laser type : Infrared laser Working area(mm) 100×100 Graphic format supported PLT，DXF Working enviroment 10-35℃ Equipment power(Kw) : ＜10 Laser processing accuracy(mm) : ± 0.02 Supply voltage : 220V/50Hz
