Transfer unit TYP 35 series

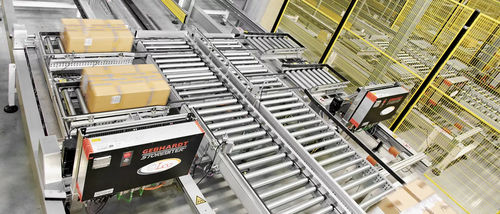

The GEBHARDT lifting belt transfer unit is suitable for the horizontal transport of containers and cartons in order to discharge them at right angles or parallel from the transport flow. The frame consists of bolted sheet metal profiles. The toothed belts serve as the carrying means. The drive is located below the lifting belt transfer unit. The lift is pneumatic or electric, depending on the type of drive. The lifting belt transfer unit includes two toothed belt strands as standard. Additional strands are available as an option. The unit is used indoors at normal room temperature. Pneumatic lifting belt transfer unit – one-sided • Lifting belt transfer unit above a track • The drive takes place via a motor roller or by overdrive • Suitable for transporting containers, cartons and other load carriers • One-sided orthogonal discharge possible Motorised lifting belt transfer unit – one-sided • Lifting belt transfer unit above a track • The drive takes place via a motor roller or by overdrive • Suitable for transporting containers, cartons and other load carriers • One-sided orthogonal discharge possible Pneumatic lifting belt transfer unit – double deep • Lifting belt transfer unit over two tracks • The drive takes place via a motor roller or by overdrive • Ejection on a parallel track possible • Suitable for transporting containers, cartons and other load carriers
