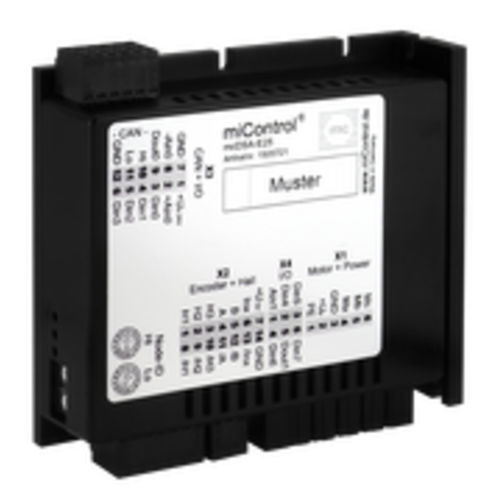

4-quadrant motor controller / DC / EC / linear array 4-quadrant motor controller / DC / EC / linear array - E25


  • AC/DC:


  • Motor type:

    EC, linear array

  • Other characteristics:

    compact, programmable, with speed control, CANopen, 4-quadrant

  • Input/output:

    with integrated I/O

  • Input voltage:

    Max.: 30 V

    Min.: 9 V

  • Current:

    Max.: 100 A

    Min.: 0 A

  • Output voltage:

    Max.: 60 V

    Min.: 9 V


Characteristics: The E55 controller is designed for both type of installation. As well for external or internal installation. Our motor controller are made for electronically commutated motors and incl. speed control and regulate block-commutated brushless DC Motors. CanOpen BUS-Communication is our standard and embedded. You can use it as well for brushed or brushless DC motors.

- Motor controller up to 100A
- Compact for 4-quadrant controller for DC & BLDC
- CAN interface (Protocol DS301, device profile DS402)
- Integrated digital inputs
- Integrated digital outputs
- Integrated analog inputs
- Overload- and underlaod protection
- Overtemperature monitoring
- Device status notification in LED (Power, Status, Error)
- Hex-Switches to set device node ID
- Easily programmable thanks build-in MPU (Motion Process Unit)
