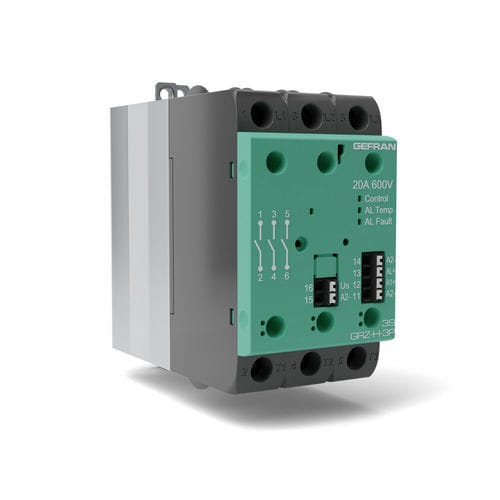

AC solid state relay GRZ-H

DCcompactthree-phase

The GRZ-H series is a three-phase solid-state relay that controls electric heaters and industrial heating processes. The compact designs are ideal for electrical panels with limited space. Electrical heating control The current range for the GRZ-H series is 10A to 75A, and this controller has an efficient zero-crossing (ZC) mode. Two or three-leg load control The GRZ-H series is configured to control two or three legs of a heating circuit. While three-leg breaks are commonly used, the two-leg option generates less heat in the electrical panel. Diagnostics The GRZ-H series monitors and prevents system failures, and it reduces the risk of costly downtime and material waste. To improve uptime, this controller has a silicon-controlled rectifier (SCR) over-temperature alarm, it monitors line voltage for failures, it has fuse break protection, and load interruptions are monitored and displayed clearly for users. Two or three-leg control Zero-crossing voltage switching Input command: DC/AC signals Operating range 0°C-70°C/32°F-158°F (derating curves) Load voltage 480V AC or 600V AC Status monitoring and five diagnostic LEDs Compact sizes to fit in electrical panels DIN rail and panel mounting Push-in connectors Cage clamps for power cables Smart fan options (Vdc/Vac)
