Dry air generator DAP series

processair-cooled

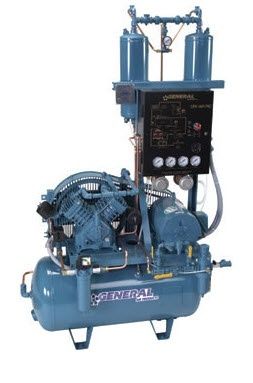

General's DAP Series Dry Air Pac™ is an FM Approved, twin tower regenerative dryer / compressor package. This turnkey system is designed to provide the sprinkler system with moisture free air to a -40 deg. F Dew Point. The air compressor is designed to fill the sprinkler system in accordance with NFPA 13 standards, as well as provide the higher pressure needed to allow the twin tower regenerative dryer to function properly. Prior to entering the regenerative air dryer, an air cooled aftercooler cools the compressor's hot discharge air to a maximum 100° F. A coalescing prefilter with differential pressure gauge removes oil vapor and other contaminants that can destroy the desiccant in the dryer towers. A combination particulate filter and regulator prevents downstream migration of desiccant dust while regulating air pressure to the sprinkler system. All components are pre-piped, pre-tested, and pre-wired for ease of mechanical and electrical installation on site. Each unit includes a UL Listed, FM Approved Air Maintenance Device. -100° F dew point is achievable - consult factory for details. Applications for the Dry Air Pac™ include, but are not limited to Freezer Rooms, Cold Storage Warehouses, Attic Spaces and Parking Garages.
