Storage server S463-Z30-AAB1
4UAMD EPYC™10GbE

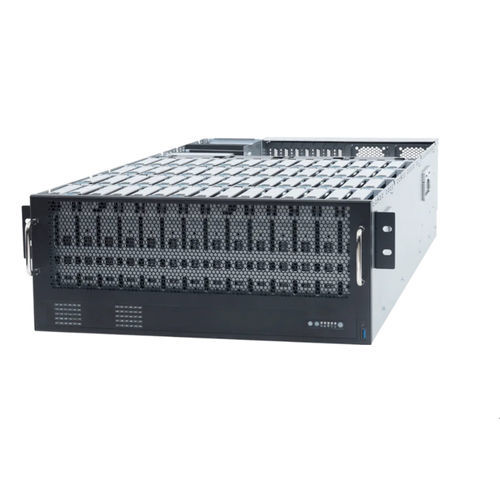

Storage server - S463-Z30-AAB1 - GIGABYTE G.B.T Technology Trading GmbH - 4U / AMD EPYC™ / 10GbE
Storage server - S463-Z30-AAB1 - GIGABYTE G.B.T Technology Trading GmbH - 4U / AMD EPYC™ / 10GbE
Storage server - S463-Z30-AAB1 - GIGABYTE G.B.T Technology Trading GmbH - 4U / AMD EPYC™ / 10GbE - image - 2
Storage server - S463-Z30-AAB1 - GIGABYTE G.B.T Technology Trading GmbH - 4U / AMD EPYC™ / 10GbE - image - 3
Storage server - S463-Z30-AAB1 - GIGABYTE G.B.T Technology Trading GmbH - 4U / AMD EPYC™ / 10GbE - image - 4
Storage server - S463-Z30-AAB1 - GIGABYTE G.B.T Technology Trading GmbH - 4U / AMD EPYC™ / 10GbE - image - 5
Add to favorites
Compare this product

Characteristics

Type
storage
Mounting
4U
Processor
AMD EPYC™
Network
PCIe, 10GbE, 1GbE, NVMe, SATA
Memory
DDR5 SDRAM

Description

Product Summary
  • 4U storage server platform supporting single AMD EPYC™ 9005 / 9004 Series processors (SP5 / LGA 6096) in a high-density chassis. Form factor: 4U (434 x 176 x 853 mm).
  • Optimized for dense block/object storage, caching and software-defined storage (SDS) deployments with combination of 3.5" bays and rear NVMe/service bays.


Key Highlights
  • Single AMD EPYC™ 9005/9004 series processor support (single-socket, cTDP up to 400 W).
  • 12-channel DDR5 memory architecture with 24 DIMM slots; supports DDR5 RDIMM.
  • High internal capacity: 60 x 3.5" internal hot-swap SATA/SAS bays.
  • Rear service and NVMe: 6 x 2.5" Gen5 NVMe hot-swap bays + 2 x 2.5" SATA hot-swap bays.
  • SAS expanders (Broadcom) supporting up to 12 Gb/s per port.
  • Rear network: 2 x 10 Gb/s LAN (Broadcom® BCM57416) + 1 x 1 Gb/s management LAN.
  • Integrated ASPEED® AST2600 BMC (1 x VGA) for remote management.
  • Expansion: 4 x low-profile PCIe Gen5 x16 slots.
  • Redundant power: 4 x 800 W 80 PLUS Platinum PSUs (hot-swap, redundant).


Storage & Expansion
  • Internal hot-swap: 60 x 3.5" SATA/SAS bays (requires storage card/expander for SAS operation).
  • Rear hot-swap: 6 x 2.5" Gen5 NVMe bays for high-speed cache or tiering.
  • Rear service: 2 x 2.5" SATA hot-swap bays for OS or service drives.
  • 1 x M.2 (2280/22110) slot (PCIe Gen4 x4) for boot or local storage.
  • SAS expander: Broadcom SAS35x40; SATA 6 Gb/s or SAS 12 Gb/s per port.


Memory & CPU Details
  • 24 DIMM slots supporting DDR5 RDIMM (12 channels per processor).
  • AMD EPYC™ 9005: up to 5200 MT/s (1DPC); up to 4400 MT/s (1R 2DPC); 4000 MT/s (2R 2DPC).
  • AMD EPYC™ 9004: up to 4800 MT/s (1DPC); 3600 MT/s (2DPC).


Networking & Management
  • Rear LAN: 2 x 10 Gb/s via Broadcom® BCM57416 (NCSI supported).
  • 1 x 10/100/1000 Mb/s management LAN (BMC).
  • Remote management: ASPEED® AST2600 integrated BMC with VGA; supports GIGABYTE Management Console and GSM (IPMI/Redfish compliant).


Power, Cooling & Reliability
  • Power: 4 x 800 W 80 PLUS Platinum redundant PSUs. AC input: 100-127V~ 10A or 200-240V~ 5A, 50/60Hz (DC options in some regions).
  • Cold Redundancy: places one PSU in standby when total load < 40% to improve efficiency.
  • Cooling: 4 x 80 x 80 x 38 mm hot-swap system fans.
  • High availability features: SmaRT and SCMP to prevent unexpected shutdowns and protect data integrity.


Security & Optional Modules
  • TPM: 1 x TPM header (SPI); optional TPM 2.0 kit (CTM012) supported for hardware-based authentication and secure key storage.


User Friendliness & Deployment
  • Tool-less drive bay design for fast drive insertion/removal.
  • Designed and validated for SDS platforms; GIGABYTE reference architectures available for common SDS stacks.


Software & Ecosystem
  • GIGABYTE Management Console (pre-installed) and GSM (GIGABYTE Server Management) for cluster-wide management, CLI and mobile monitoring; VMware vCenter integration via plugins supported.


Ordering & Part Numbers
  • Ordering Number (Barebone): 6NS463Z30MR000ACB1*
  • Motherboard: 9MZ33AR1MR-000*


Technical specifications
  • Model name: S463-Z30-AAB1 (Rev. 3.x)
  • Chassis: 4U (434 x 176 x 853 mm)
  • Motherboard: MZ33-AR1
  • CPU: AMD EPYC™ 9005 / 9004 Series (single processor, cTDP up to 400 W)
  • Socket: 1 x LGA 6096 (Socket SP5)
  • Chipset: System on Chip
  • Memory: 24 x DIMM, DDR5 RDIMM, 12-channel per processor; speeds as per CPU model
  • LAN: Rear: 2 x 10 Gb/s (Broadcom® BCM57416) + 1 x 1 Gb/s management LAN
  • Video/BMC: ASPEED® AST2600 integrated (1 x VGA)
  • Internal storage: 60 x 3.5" internal hot-swap SATA/SAS bays (requires storage card/expander)
  • Rear storage: 6 x 2.5" Gen5 NVMe hot-swap bays; 2 x 2.5" SATA hot-swap bays
  • Internal M.2: 1 x M.2 (2280/22110), PCIe Gen4 x4
  • SAS expander: Broadcom SAS35x40 (SATA 6 Gb/s or SAS 12 Gb/s per port)
  • PCIe expansion: 4 x low-profile PCIe Gen5 x16 slots
  • Front I/O: 1 x USB 3.2 Gen1 Type-A, power button, ID, reset, status LEDs
  • Rear I/O: 2 x USB 3.2 Gen1, 1 x VGA, 1 x Serial, 2 x RJ45, 1 x MLAN, ID LED
  • Security: 1 x TPM header (SPI) — optional TPM 2.0 kit CTM012 supported
  • Power supply: 4 x 800 W 80 PLUS Platinum redundant PSUs (AC: 100-127V~/10A or 200-240V~/5A; DC options noted)
  • System fans: 4 x 80 x 80 x 38 mm
  • Operating temperature: 10°C to 30°C; operating humidity: 8% to 80% (non-condensing)
  • Non-operating: -40°C to 60°C; humidity 20% to 95% (non-condensing)
  • Packaging content: 1 x S463-Z30-AAB1, 1 x CPU heatsink, 1 x rail kit
  • Part numbers: Barebone: 6NS463Z30MR000ACB1*; Motherboard: 9MZ33AR1MR-000*
