Storage server E284-S90-AAJ1
networkcalculationEDGE

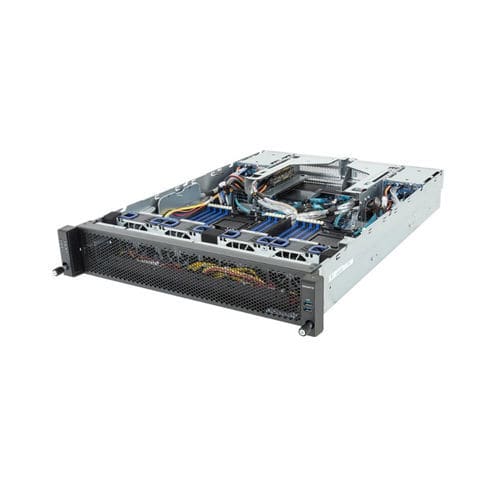

Storage server - E284-S90-AAJ1 - GIGABYTE G.B.T Technology Trading GmbH - network / calculation / EDGE
Storage server - E284-S90-AAJ1 - GIGABYTE G.B.T Technology Trading GmbH - network / calculation / EDGE
Storage server - E284-S90-AAJ1 - GIGABYTE G.B.T Technology Trading GmbH - network / calculation / EDGE - image - 2
Storage server - E284-S90-AAJ1 - GIGABYTE G.B.T Technology Trading GmbH - network / calculation / EDGE - image - 3
Storage server - E284-S90-AAJ1 - GIGABYTE G.B.T Technology Trading GmbH - network / calculation / EDGE - image - 4
Storage server - E284-S90-AAJ1 - GIGABYTE G.B.T Technology Trading GmbH - network / calculation / EDGE - image - 5
Add to favorites
Compare this product

Characteristics

Type
storage, network, EDGE, calculation
Mounting
rack-mount, 2U
Processor
Intel® Xeon
Applications
business
Other characteristics
high-performance, SATA, NVMe

Description

Product Overview
  • Edge server E284-S90-AAJ1, 2U dual-socket platform for enterprise Edge, networking and hybrid/private cloud deployments.
  • Supports dual Intel® Xeon® 6700/6500-Series processors.
  • 8-channel DDR5 RDIMM/MRDIMM memory, 32 DIMM slots.
  • Rear: 4 x 2.5-inch Gen5 NVMe / SATA / SAS-4 hot-swap bays; 2 x M.2 (PCIe Gen5 x4).
  • Expansion: 6 x FHHL PCIe Gen5 x16 slots plus 2 x OCP NIC 3.0 (Gen5 x16).
  • Redundant 1+1 2000W 80 PLUS Titanium power supplies.


Key Features
  • Compatible with Intel® Xeon® 6 Processor family (6700/6500 series). Dual CPU design; TDP up to 300W (some SKUs up to 350W at 25°C ambient).
  • Memory: RDIMM up to 6400 MT/s (1DPC), 5200 MT/s (2DPC); MRDIMM support for select SKUs up to 8000 MT/s (select CPUs, 1DPC).
  • High I/O density via multiple PCIe Gen5 lanes and M.2 Gen5 connectivity for NVMe acceleration.
  • Integrated management: ASPEED AST2600 BMC with dedicated management LAN and Mini-DP video output.
  • Designed for edge computing, networking appliances and hybrid cloud nodes.


Storage & Expansion
  • Rear hot-swap: 4 x 2.5-inch Gen5 NVMe / SATA / SAS-4 (configuration: 2 NVMe routed to CPU_0, 2 NVMe routed to CPU_1; SATA via I/O board where applicable).
  • Internal M.2: 2 x M.2 (2280/22110) PCIe Gen5 x4 from CPU_1; additional internal M.2 on I/O board: 1 x M.2 (2280) PCIe Gen5 x2 from CPU_0 (used for SATA in some configs).
  • PCIe expansion: 3 x FHHL x16 (Gen5 x16) from CPU_0; 3 x FHHL x16 (Gen5 x16) from CPU_1; 2 x OCP NIC 3.0 (Gen5 x16), one per CPU.


Power, Cooling & Availability
  • Redundant PSUs: 1+1 2000W 80 PLUS Titanium (AC and DC input options available per spec).
  • System fans: 4 x 80 x 80 x 38 mm with automatic fan speed control.
  • Cold redundancy and power management features to improve efficiency under varying loads.
  • Reliability features: Smart Ride Through (SmaRT), Smart Crises Management and Protection (SCMP) and dual ROM architecture.


Security & Serviceability
  • Optional TPM 2.0 header (SPI) and available TPM kit; PRoT connector on select RoT SKUs.
  • Tool-less drive bay design and OCP 3.0 serviceability for network/add-in cards.
  • Accessible rear I/O and maintenance-friendly component layout.


Management & Software
  • GIGABYTE Management Console (web) for real-time health monitoring; supports IPMI and integrates RAID/SAS/NVMe monitoring.
  • GIGABYTE Server Management (GSM) suite: GSM Server, GSM CLI, GSM Agent and GSM Mobile; supports IPMI and Redfish standards.


Ordering & Identifiers
  • Barebone ordering number: 6NE284S90DR000AAJ1*; additional part numbers and optional accessories referenced in technical specifications.


Technical Specifications
  • Form factor: 2U — 438 x 87.5 x 625 mm (WxHxD).
  • Motherboard: MS94-FS0.
  • CPU: Dual Intel® Xeon® 6700/6500-Series; socket: 2 x LGA 4710 (Socket E2); TDP up to 300W (select SKUs up to 350W at 25°C).
  • Memory: 32 x DIMM slots; DDR5 RDIMM / MRDIMM; 8-channel per CPU.
  • LAN: Rear I/O board with 2 x 1 Gb/s LAN (Intel® I350-AM2) and 1 x 10/100/1000 Mbps management LAN.
  • Video: Integrated ASPEED AST2600; 1 x Mini-DP output.
  • Storage: Rear hot-swap 4 x 2.5-inch Gen5 NVMe / SATA / SAS-4; internal M.2 options as described above.
  • PCIe: 3 x FHHL x16 (Gen5 x16) per CPU; 2 x OCP NIC 3.0 (Gen5 x16).
  • Front I/O: 2 x USB 3.2 Gen1 Type-A; power/ID/NMI/reset buttons; status LEDs.
  • Rear I/O: 2 x USB 3.2 Gen1 Type-A; 1 x Mini-DP; 2 x RJ45 LAN; 1 x MLAN; ID LED.
  • Security: TPM header (SPI) optional; PRoT connector on select SKUs.
  • Power: 1+1 2000W 80 PLUS Titanium redundant PSUs. AC and DC input options per spec.
  • Fans: 4 x 80 x 80 x 38 mm.
  • Operating: 10°C to 35°C; humidity 8% to 80% non-condensing.
  • Weight: Net 16 kg; Gross 25.3 kg.
  • Packaging: 987 x 594 x 282 mm. Contents: 1 x E284-S90-AAJ1; 2 x CPU heatsinks; 1 x Mini-DP to D-Sub cable; 4 x carriers. Rail kit not included.
  • Part numbers: Barebone 6NE284S90DR000AAJ1*; motherboard 9MS94FS0UR-000*; backplane CBP2025 9CBP2025NR-00*; I/O board CDCR010 9CDCR010NR-00*.
