SSI-CEB motherboard MZ23-SU0
AMD EPYC™DDR5 SDRAM16x PCI Express

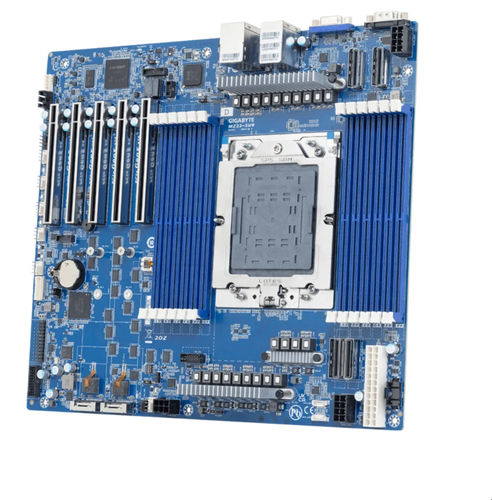

SSI-CEB motherboard - MZ23-SU0 - GIGABYTE G.B.T Technology Trading GmbH - AMD EPYC™ / DDR5 SDRAM / 16x PCI Express
SSI-CEB motherboard - MZ23-SU0 - GIGABYTE G.B.T Technology Trading GmbH - AMD EPYC™ / DDR5 SDRAM / 16x PCI Express
SSI-CEB motherboard - MZ23-SU0 - GIGABYTE G.B.T Technology Trading GmbH - AMD EPYC™ / DDR5 SDRAM / 16x PCI Express - image - 2
SSI-CEB motherboard - MZ23-SU0 - GIGABYTE G.B.T Technology Trading GmbH - AMD EPYC™ / DDR5 SDRAM / 16x PCI Express - image - 3
Add to favorites
Compare this product

Characteristics

Format
SSI-CEB
Processor
AMD EPYC™
Memory
DDR5 SDRAM
Extension slot
M.2, SATA3, 16x PCI Express
Applications
server
Memory frequency
DDR5 4800 MHz
Connectivity
gigabit Ethernet, USB 3.0, VGA, RS-232

Description

Overview
  • Motherboard for single AMD EPYC™ 9005 / 9004 series processors, CEB UP form factor.
  • Designed for high-density server and enterprise deployments with extensive PCIe Gen5 expansion and 12-channel DDR5 memory support.

Key Features
  • Single AMD EPYC™ 9005/9004 Series Processor support (single-socket, cTDP up to 500 W).
  • 12-channel DDR5 RDIMM memory architecture with 12 DIMM slots (supports high memory bandwidth).
  • Multiple high-performance expansion options: 5 x PCIe Gen5 x16 expansion slots.
  • MCIO storage flexibility: MCIO 8i modules configurable for Gen5 NVMe or SATA.
  • Dual management and data LAN support: 2 x 1 Gb/s LAN via Intel® I350-AM2 plus 1 x management LAN.
  • Integrated ASPEED® AST2600 BMC for system management and remote console.
  • Multiple M.2 slots and onboard internal connectors for system integration.

Ordering Numbers
Retail: 9MZ23SU0MR-000-3*
Bulk: 9MZ23SU0NR-000-3*

Additional Notes
  • Optional TPM 2.0 support via TPM header (SPI). Optional TPM kit part number: CTM012.
  • Board is prepared for AMD EPYC™ 9005 Series; BIOS/OEM enablement may be required for compatibility with some platforms.

Caractéristiques / Spécifications techniques
  • Form Factor: CEB, 304.8 x 266.7 mm.
  • CPU: AMD EPYC™ 9005 Series Processors and AMD EPYC™ 9004 Series Processors. Single processor, configurable TDP up to 500 W.
  • Socket: 1 x LGA 6096 (Socket SP5).
  • Chipset: System on Chip (SoC).
  • Memory: 12 x DIMM slots. Support DDR5 RDIMM. 12-channel memory per processor. AMD EPYC™ 9005: up to 6400 MT/s. AMD EPYC™ 9004: up to 4800 MT/s.
  • LAN: 2 x 1 Gb/s LAN (1 x Intel® I350-AM2) with NCSI support. 1 x 10/100/1000 Mb/s Management LAN.
  • Video: Integrated via ASPEED® AST2600 — 1 x VGA port.
  • Audio: N/A.
  • Storage Interface: MCIO — 2 x MCIO 8i (each can provide 4 x Gen5 NVMe or 8 x SATA depending on configuration); additional 2 x MCIO 8i for Gen5 x8. M.2 — 2 x M.2 (2280/22110), PCIe Gen3 x2.
  • RAID: N/A.
  • PCIe Expansion Slots: 5 x full-length PCIe x16 slots (each PCIe Gen5 x16). Plus 2 x MCIO 8i (Gen5 x8 or SATA) and 2 x MCIO 8i (Gen5 x8) connectors.
  • Internal I/O: 1 x 24-pin ATX main power, 2 x 8-pin ATX 12V, 1 x 6-pin ATX 12V, 1 x CPU fan header, 5 x system fan headers, 1 x USB 3.2 Gen1 x2 header, 2 x M.2 slots, 4 x MCIO 8i connectors, 1 x front panel header, 1 x backplane board header, 1 x PMBus connector, 1 x IPMB connector, 1 x TPM header.
  • Rear I/O: 2 x USB 3.2 Gen1 (Type-A), 1 x VGA, 1 x Serial port, 2 x RJ45 LAN ports, 1 x MLAN port, 1 x ID button with LED.
  • Security Modules: 1 x TPM header with SPI interface (optional TPM 2.0 kit: CTM012).
  • Board Management: ASPEED® AST2600 Baseboard Management Controller with GIGABYTE Management Console web interface.
  • PSU Connectors: 1 x 24-pin ATX main, 2 x 8-pin ATX 12V, 1 x 6-pin ATX 12V.
  • Operating Properties: Operating temperature 10°C to 40°C. Operating humidity 8% to 80% (non-condensing). Non-operating temperature -40°C to 60°C. Non-operating humidity 20% to 95% (non-condensing).
  • Retail Packaging Content: 1 x MZ23-SU0, 1 x I/O shield, 1 x MCIO 8i to 8 x SATA cable (600 mm). Single box dims: 360 x 330 x 80 mm. Carton dims: 674 x 424 x 385 mm. 10 single boxes per carton.
  • Bulk Packaging Content: 10 x MZ23-SU0, 10 x I/O shields. Carton dims: 600 x 473 x 495 mm.
  • Reference / Part Numbers: Retail: 9MZ23SU0MR-000-3*. Bulk: 9MZ23SU0NR-000-3*. I/O shield: 12AIO-MZ23SU-00R. MCIO 8i to 8 x SATA cable (600 mm): 25CF9-6007A7-A4R. Optional MCIO cable: 25CF9-550700-A4R.
