Vane air motor 9M

compact

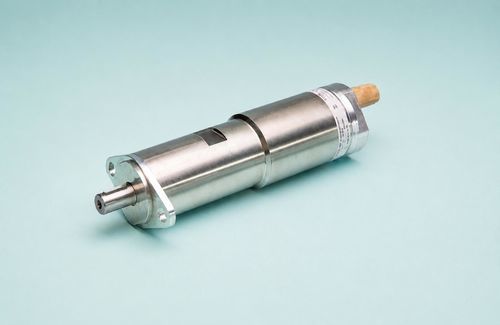

9M Compact Vane Motor
The 9M compact vane motor is a high-performance pneumatic vane air motor designed for industrial applications where compressed air is preferred over electricity. The 9M delivers reliable, safe, and durable power for wet, corrosive, or explosive environments and is part of the GLOBE-Archimedes Compact Vane Motor range.

GLOBE Airmotors 9M
GLOBE Airmotors manufactures the 9M with a focus on safety, low maintenance, and longevity. Standard case and end plate are AISI 303 stainless steel, with a fully stainless-steel build available for aggressive environments and the foodstuffs industry — same performance and dimensions as the standard version. ATEX certificate available for explosive atmospheres (II cat. 2 G&D T3), making the 9M a trusted choice across industries.

Key features and product attributes of the 9M include:

• Product group: GLOBE-Archimedes Compact Vane Motor
• Power source: compressed air (pneumatic vane air motor)
• ATEX: Certificate available for hazardous environments (II cat. 2 G&D T3)
• Case and end plate: AISI 303 stainless steel
• Optional stainless steel shaft (AISI 303)
• Reversible and uni-directional motors available
• Non-reversible motors: standard CCW rotation (counterclockwise, facing the shaft); CW rotation available.
• Optional protruding bearing for safe alignment when mounting to other equipment or an interfacing flange.
• Optional internal brake device (single-stage, two-stage, and three-stage models) to prevent the exit shaft from rotating when the motor is static
• Non-lubricated version available
• Mounting via flange, threads on the front, or threads on the motor housing
• Available in stainless steel
• Technical specifications and performance

Technical highlights for the 9M:

• Rotation: standard CCW (facing the shaft), CW available on request
• Mounting forms: flange, front-face thread, housing thread
• Max power: 1 kW (1.34 HP)

The 9M excels in industrial settings that demand robust, explosion-safe motors: food processing (wet or corrosive conditions), chemical plants, painting booths, and hand-held or space-constrained machinery.

Benefits include:

• Safe operation in explosive, wet, or corrosive environments
• Durable build for heavy-duty cycles
• Stalls under load without overheating or burning out
• Low maintenance reduces downtime and life-cycle costs
• Instantly reversible with a simple control valve, and controllable across a wide speed range
• Compact and lightweight

Available in stainless steel for aggressive environments and the foodstuffs industry, and couplable to a wide range of gearboxes for higher torque, the 9M offers a compact, powerful, and safe alternative to electric motors for installations that demand reliability in harsh or hazardous conditions.

Our compact vane motors are available in different power levels, from 0.27kW / 0.36 HP to 1kW / 1.36 HP. The 9M Compact Vane Motor is the largest model within this series.
