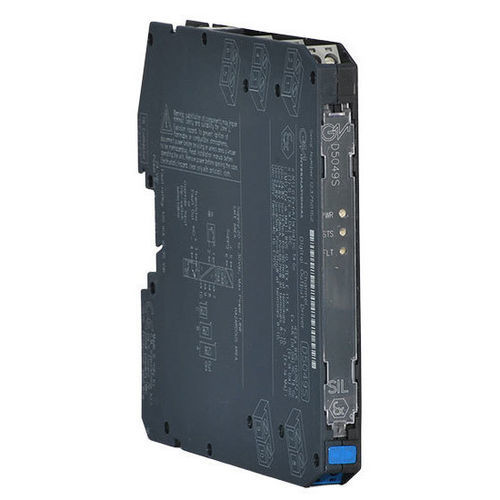

Digital output module D5049S

safetycurrenttemperature

The Bus-Powered Digital Output Driver D5049S is designed for high-risk industries requiring SIL 3 safety levels. It controls solenoid valves, alarms, and other devices in hazardous areas from safe area signals. Features include line/load open/short circuit detection, override input, and three selectable output circuits. It supports field programmability via DIP switches and offers three-port isolation. - SIL 3 / SC 3 - Output to Zone 0/Div. 1 - Installation in Zone 2/Div. 2 - Bus powered for NE loads - Line & Load short/open circuit detection - Output short circuit proof - In-field programmability by DIP Switch - Three port isolation, Input/Output/Fault **Technical Specifications:** - Supply: 24 Vdc nominal (20 to 30 Vdc), reverse polarity protected - Current Consumption: 65 mA @ 24 Vdc with 45 mA output, typical - Power Dissipation: 1.1 W @ 24 Vdc with 45 mA output, typical - Operating Temperature: –40 to +70 °C - Dimensions: 12.5 x 123 x 120 mm - Weight: about 135 g - Channels: 1 - Status: ACTIVE
