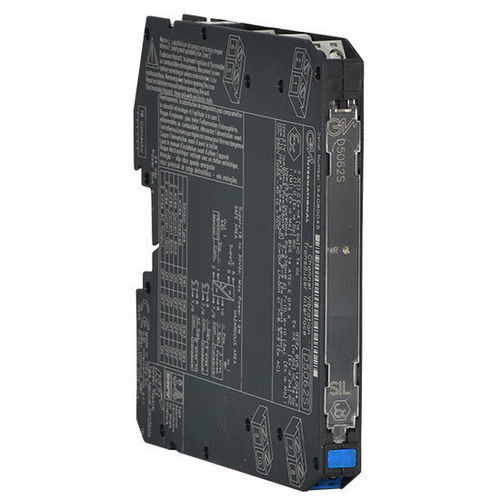

Analog isolator-converter D5062S

signalfor hazardous locationsfully-isolated

The Vibration Transducer Interface D5062S is a high integrity analog input interface suitable for applications requiring SIL 2 level in safety related systems for high risk industries. It provides a fully floating dc supply for energizing vibration transducers, accelerometers or 2-3 wires sensors located in Hazardous Area, and repeats the sensor input voltage in a totally isolated circuit located in Safe Area to drive vibration monitors or analyzers for rotating machinery control and supervision purposes.SIL 2 / SC 3Input from Zone 0/Div. 1Installation in Zone 2/Div. 20 to –20 V Input/Output SignalWide band signal transferInput and Output short circuit proofIn-field programmability by DIP SwitchHigh AccuracyThree port isolation, Input/Output/SupplyStatus: ACTIVEChannels: 1Technical DataSupplyVoltage24 Vdc nom (18 to 30 Vdc), reverse polarity protected.Current Consumption90 mA @ 24 Vdc with 20 mA transducer consumption and 2 mA output load, typical.Power Dissipation2.0 W @ 24 Vdc with 20 mA transducer consumption and 2 mA output load, typical.InputType0 V to -20 V (10 kΩ impedance at terminals 7-8 or 8-9).3 wires sensor supply voltagemore than -22 V @ 0 mA supply, more than -17 V @ 15 mA supply (current limited @ ≈ 23 mA).2 wires sensor supply voltagemore than -17 V with constant current supply.2 wires sensor supply currentselectable @ 4 mA, 6 mA or 10 mA via internal DIP–Switch.OutputType0 to -20 V on 10 kΩ load, with 10 Ω output resistance.Response time≤ 10 µs (10 to 90 % step change).Frequency responseDC to 20 kHz within 1 dB maximum.PerformanceRef. Conditions24 V supply, 10 kΩ load, 23 ± 1 °C ambient temperatureCalibration accuracy≤ ± 0.1 % FSRLinearity accuracy≤ ± 0.05 % FSRTemp. influence≤ ± 0.005 % on zero/span for a 1 °C change.IsolationTest VoltageI.S. In/Out 1.5 kV; I.S. In/Supply 1.5 kV; Out/Supply 500 VEnvironmental conditionsOperating temperaturetemperature limits –40 to +70 °CStorage temperaturetemperature limits –45 to +80 °CSafety descriptionEquipmentAssociated apparatus and non-sparking electrical equipmentSafety parametersUo = 27 V, Io = 90 mA, Po = 576 mW at terminals 7-8-9-10. Ui = 30 V, Ci = 0 nF, Li = 0 nH at terminals 7-8-9. Um = 250 Vrms or Vdc, -40 °C ≤ Ta ≤ 70 °C.MountingTypeDIN-Rail 35 mm, with or without Power Bus or on custom Term. Board.Weightabout 125 g.Connectionby polarized plug-in disconnect screw terminal blocks to accomodate terminations up to 2.5 mm² (13 AWG).DimensionsWidth 12.5 mm, Depth 123 mm, Height 120 mm.Certifications:ATEX, IECEx, EMC, Ex, Maritime, Metrological, SIL certificates available for various regions (Europe, China, Eurasian Community, North America, Japan, UAE, Belarus, Kazakhstan, Russia, International)Declarations of Conformity:EU Declaration of Conformity for D5062Declaration of Conformity G3 complianceAccessories: JDFT049, OPT5096
