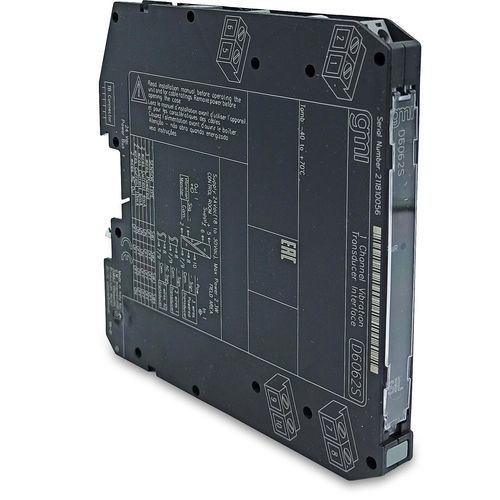

DIN rail transducer D6062S

SIL 2analog

SIL2 Vibration Transducer InterfaceThe Vibration Transducer Interface D6062S is a high integrity analog input interface suitable for applications requiring SIL 2 level in safety related systems for high risk industries. It provides a fully floating dc supply for energizing vibration transducers, accelerometers or 2-3 wires sensors, and repeats the sensor input voltage in a totally isolated circuit to drive vibration monitors or analyzers for rotating machinery control and supervision purposes.SIL 2 / SC 30 to –20 V Input/Output SignalWide band signal transferInput and Output short circuit proofIn-field programmability by DIP SwitchHigh AccuracyThree port isolation, Input/Output/SupplyTechnical Specifications:Supply:Voltage: 24 Vdc nom (18 to 30 Vdc), reverse polarity protected.Current Consumption: 90 mA @ 24 Vdc with 20 mA transducer consumption and 2 mA output load, typical.Power Dissipation: 2.0 W @ 24 Vdc with 20 mA transducer consumption and 2 mA output load, typical.Input:Type: 0 V to -20 V (10 kΩ impedance at terminals 7-8 or 8-9).3 wires sensor supply voltage: more than -22 V @ 0 mA supply, more than -17 V @ 15 mA supply (current limited @ ≈ 23 mA).2 wires sensor supply voltage: more than -17 V with constant current supply.2 wires sensor supply current: selectable @ 4 mA, 6 mA or 10 mA via internal DIP–Switch.Output:Type: 0 to -20 V on 10 kΩ load, with 10 Ω output resistance.Response time: ≤ 10 µs (10 to 90 % step change).Frequency response: DC to 20 kHz within 1 dB maximum.Performance:Ref. Conditions: 24 V supply, 10 kΩ load, 23 ± 1 °C ambient temperatureCalibration accuracy: ≤ ± 0.1 % FSRLinearity accuracy: ≤ ± 0.05 % FSRTemp. influence: ≤ ± 0.005 % on zero/span for a 1 °C change.Isolation:Test Voltage: In/Out 1.5 kV; In/Supply 1.5 kV; Out/Supply 500 V.Environmental conditions:Operating temperature: –40 to +70 °CStorage temperature: –45 to +80 °CMounting:Type: DIN-Rail 35 mm, with or without Power Bus or on custom Term. Board.Weight: about 125 g.Connection: by polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG).Dimensions: Width 12.5 mm, Depth 123 mm, Height 120 mm.Channels: 1Status: ACTIVE
