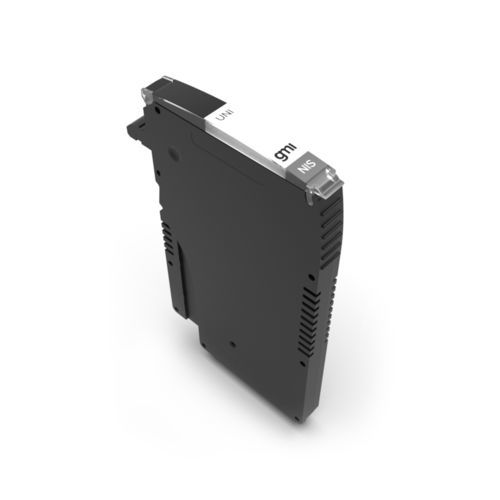

SIL2 universal transmitter X1-NIS-UNI-01-S

DIN rail

The Universal X1-NIS-UNI-01 module is a high integrity interface suitable for applications requiring SIL 3 or SIL 2 level (depending on applications) in safety related systems for high risk industries. Thanks to its high flexibility, it can interface 2-wire active/passive 4-20 mA (AI), smart positioners (AO), switches and proximity detectors (DI), as well as solenoid valves and other process control devices (DO). HART® communication is supported for both active and passive transmitters, and I/P. The module always sinks current and the Termination Board extends its use to source loops. Programmable line and load open/short circuit detection and out-of-range current fault is also provided. The module automatically matches the application, without reprogramming; if required, it can be re-calibrated through the configuration software. To ease maintenance operations, field devices can be disconnected through a two-position insertion/extraction mechanism. This product requires a dedicated Termination Board.SIL 3/2 depending on applications / SC 3Installation in Zone 2 / Division 2Loop disconnection to ease maintenance operationsSuitable for AI, AO, DI and DO applications without configurationHART® compatible (passive and active AI/AO loops)Line & Load short/open circuit programmable diagnosticsOut-of-range fault with programmable thresholdsDigital calibration available through configuration softwareInput and Output short circuit proofField fault mirroring to the DCS/PLC UNI CardHigh AccuracyThree port isolation, Input/Output/SupplyTechnical Specifications:AI Power dissipation: 0.8 W (pass. Tx), 1.0 W (act. Tx) with 20 mA, 24 V + 250 Ω out @ 24 Vdc, typical.AO Power dissipation: 0.75 W with 20 mA on I/P out. @ 24 Vdc, typical.DI Power dissipation: 0.9 W with short circuit input @ 24 Vdc, typical.DO Power dissipation: 1.6 W with 40 mA @ 24 Vdc, typical.System Supply Type: 24 Vdc nom (18 to 30 Vdc).AI Current consumption: 32 mA (passive Tx), 18 mA (active Tx) with 20 mA @ 24 Vdc, typical.AO Current consumption: 30 mA with 20 mA on I/P out, typical.DI Current consumption: 30 mA with short circuit input @ 24 Vdc, typical.DO Current consumption: 67 mA with 40 mA @ 24 Vdc, typical.System In/Out Type: Current 0 to 40 mA, mirrored from Field. The module always sinks current and the Termination Board extends its use to source loops.Response time: 5 ms.Minimum voltage: 15 V (AI, DI, DO usage).Maximum voltage: 30 V (all applications).Field In/Out Type: Field interface specs depend on terminals and usage.Current limitation: 45 mA, typical, for all applications.AI: Current 4 to 20 mA, passive or active Tx + HART.AI Passive Tx line voltage: 15.5 V minimum @ 20 mA.AI Active Tx voltage drop: 6.5 V maximum @ 20 mA.AO: Current 4 to 20 mA + HART.AO Maximum load: 600 Ω.DI: 8 V/1 kΩ typical, according to NAMUR standard.DO: 0 to 40 mA, linear derating from 40 mA (60 °C) to 35 mA at (70 °C).DO Output voltage: 8.5 V minimum @ 40 mA.Fault Type: Load short/open with settable limits on voltage, current and resistance.Fault signalling: common fault & fault mirroring on DCS/PLC IO.Performance Ref. Conditions: 24 V supply, 250 Ω load, 23 ± 1 °C Tamb.Calibration accuracy: ≤ ± 20 µA.Linearity accuracy: ≤ ± 20 µA (4 to 20 mA), ± 60 µA (0 to 40 mA).Temp. influence: ≤ ± 2 µA/°C.Isolation Test Voltage: Field InOut/System InOut 2.5 kV; Field InOut/System Supply 2.5 kV; System InOut/System Supply 500 V.Operating temperature: –40 to +70 °CStorage temperature: –45 to +80 °C.Mounting Type: On custom Termination Board.Weight: about 50 g.Dimensions: Width 10 mm, Depth 80 mm, Height 120 mm.
