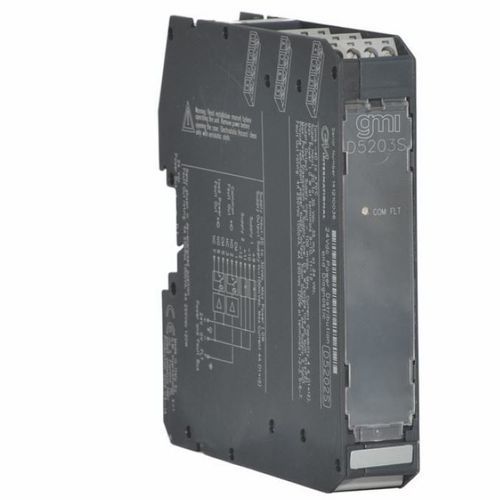

Diagnostic device D5203S

Diagnostic Module for DIN-RailThe D5203 is used to repeat the common fault signal from the Power Bus via a SPDT relay.Simplified bus fault acquisitionStatus: ACTIVETechnical DataSupplyType24 Vdc nom (18 to 30 Vdc), reverse polarity protected.Current Consumption10 mA @ 24 Vdc with relay energized, typical.Power Dissipation0.25 W @ 24 Vdc with relay energized, typical.Connectionthrough Power Bus.LEDscommon fault (red).FaultCumulative faultcumulative fault indication (about presence of short or open field circuit for any module on the Bus).Fault signalingone voltage free NE SPDT relay contact (de-energized in fault condition).Contact materialAg Alloy (Cd free).Contact rating4 A 250 Vac 1000 VA, 4 A 250 Vdc 120 W (resistive load).DC and AC load breaking capacityrefer to Instruction Manual.Mechanical / electrical life5 * 10⁶ / 3 * 10⁴ operations, typical.Operate / release time8 / 4 ms, typical.IsolationTest VoltageRelay contact groups/Supply 1.5 kV.Environmental conditionsOperating temperaturetemperature limits –40 to +70 °C.Storage temperaturetemperature limits –45 to +80 °C.MountingTypeDIN-Rail 35 mm with Power Bus.Weightabout 170 g.Connectionby polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG).DimensionsWidth 22.5 mm, Depth 123 mm, Height 120 mm.Certifications:EMC: D5000/D6000 EAC EMC Declaration of Conformity (Eurasian Community, ЕАЭС N RU Д-IT.PA08.B.82326/24, CONTROL, 2024-09-26)Maritime: DNV Maritime Certificate TAA00001U0 for D5000 series (International, TAA00001U0, DNV-GL, 2024-04-02)Declarations of Conformity:EU Declaration of Conformity for D5000 relays for Safe AreaDeclaration of Conformity G3 complianceDrawings: 3d_drawing_D5200_dwg, 3d_drawing_D5200_stpDimensions: Width 22.5 mm, Depth 123 mm, Height 120 mmConnections: by polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG)Weight: about 170 gOperating temperature: –40 to +70 °CStorage temperature: –45 to +80 °C
