10-axis positioning system HG S-57652

automaticsatellite

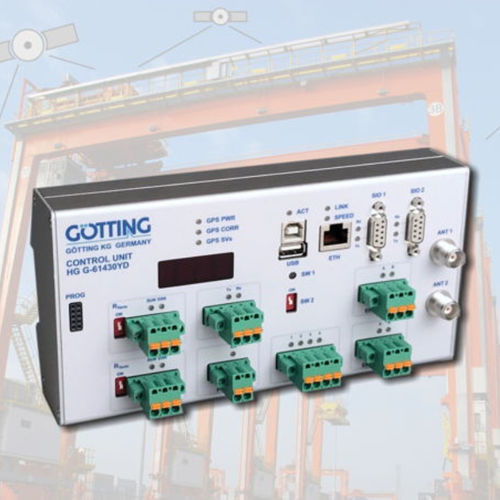

Positioning of Cranes using RTK DGNSS with Control Unit HG G-61430YD Overview RTG positioning/autosteering or container tracking with Global Navigation Satellite Systems (GNSS) State of the art RTK DGNSS Position accuracy better ±2 cm with 20 Hz update rate Heading accuracy ~ 0.1° with 2 m baseline and 20 Hz Up to 255 blocks for autosteering / container tracking User friendly and comfortable web interface via Ethernet all web browsers supported all operating systems remote usage possible Basic Function The system uses RTK DGNSS to calculate highly accurate positions (GNSS = Global Navigation Satellite System, e.g. GPS). DGNSS stands for Differential GNSS and means that a reference station uses its known position to calculate the current deviation of the GNSS signal. This difference value is then transmitted wirelessly to all rovers (usually cranes). To make the position even more accurate Real Time Kinematic (RTK) is applied. Here the carrier phase of the satellite signal is evaluated (the system needs up to approx. 60 seconds after initial start up for ruling out ambiguities). RTK DGNSS gives an accuracy of about ±2 cm which enables Container Tracking and RTG Autosteering. Container Tracking Using the system RTGs can detect and wirelessly transmit the current position whenever they pick up or set down a container. The superordinate container management system can then check the position and store it, thus documenting the whereabouts of individual containers. RTG Autosteering Due to the high accuracy of the system it is possible to track a vehicle‘s movements.
