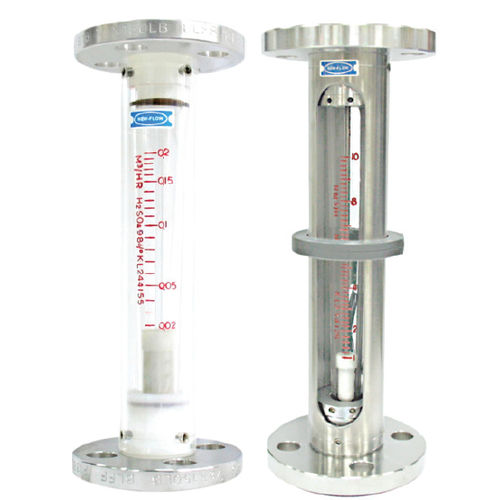

variable-area flow meter / for liquids / for gas / glass tube
NP series

{{requestButtons}}

Characteristics

  • Technology:

    variable-area

  • Fluid:

    for liquids, for gas

  • Other characteristics:

    glass tube, plastic, glass, flange

  • Applications:

    industrial, for water treatment

  • Process temperature:

    Max.: 100 °C (212 °F)

    Min.: 0 °C (32 °F)

  • Volumetric flow rate:

    400 l/min (105.7 us gal/min)

Description

Gases & Liquid
- Chemical process system
- Water treatment system
- Industrial flow system

Service Condition:

- Viscosity: ≤3 cP
- Max. working temperature: Metal 100ºC; Plastic 60ºC
- Max. working pressure:
- Body material: NPS- 15 kg/cm²; NPI- 15 kg/cm², NPV- 6 kg/cm²
- Glass tube: Borosilicate glass 6 kg/cm²
- PC tube: 10 kg/cm², Instant pressure: 15 kg/cm²

Alarm Switch Available (N.O.)
Switch rating:AC 125V 0.5A / DC 100V 10W / Max. DC 250V <1mA
Accuracy:+/-2.5% F.S.
