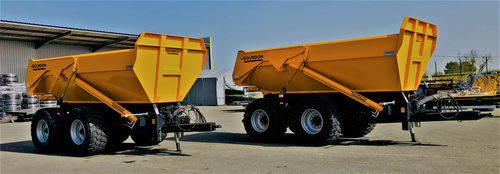

Dump trailer BT series

construction2-axletowed

• Sprung drawbar adjustable in height • Ø50 mm hitch on universal plate • Hydraulic crutch with hand pump UNDERCARRIAGE • Heavy-duty boggie axles with high amplitude • Heavy-duty suspensions • Hydraulic braking with heavy-duty brakes DUMPING • PTO-driven hydraulic circuit with piston pump • DUMPER-type wide angle dumping • Fast dump cycle by high speed distributor • Double-acting cylinders with ball-joint connections DOOR • Raised rear edge for use without door BODY • HARDOX® 450 steel bottom - thickness 10 mm • Domex® 450 steel sides - thickness 10 mm • High strength steel chassis • Rocks-breaker profile on side tops • Double LED lighting with protection grid • Electric beam protected in steel tube   Options 40 km/h homologation HITCH • Hydraulic drawbar adjustable in height • Ø80 mm Scharmüller ball on universal plate UNDERCARRIAGE • Poclain hydraulic powered axles • Other set of tyres : consult us DOOR • Automatic door with high amplitude BODY • On-demand color1 • Full HARDOX® body • Anti-tilting cylinders on rear axles
