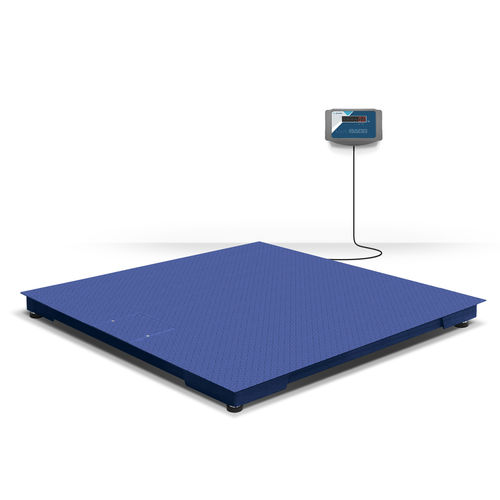

Platform scale Accurex RX Tiger
kgwith separate indicatorwith LED display

Platform scale - Accurex RX Tiger - Gram Group - kg / with separate indicator / with LED display
Platform scale - Accurex RX Tiger - Gram Group - kg / with separate indicator / with LED display
Platform scale - Accurex RX Tiger - Gram Group - kg / with separate indicator / with LED display - image - 2
Platform scale - Accurex RX Tiger - Gram Group - kg / with separate indicator / with LED display - image - 3
Platform scale - Accurex RX Tiger - Gram Group - kg / with separate indicator / with LED display - image - 4
Platform scale - Accurex RX Tiger - Gram Group - kg / with separate indicator / with LED display - image - 5
Platform scale - Accurex RX Tiger - Gram Group - kg / with separate indicator / with LED display - image - 6
Platform scale - Accurex RX Tiger - Gram Group - kg / with separate indicator / with LED display - image - 7
Platform scale - Accurex RX Tiger - Gram Group - kg / with separate indicator / with LED display - image - 8
Platform scale - Accurex RX Tiger - Gram Group - kg / with separate indicator / with LED display - image - 9
Platform scale - Accurex RX Tiger - Gram Group - kg / with separate indicator / with LED display - image - 10
Add to favorites
Compare this product
Go to the Gram Group website for more information

Characteristics

Type
platform
Unit of measurement
kg
Display
with separate indicator, with LED display
Protection level
heavy duty, IP67, IP66
Applications
for heavy loads, for pallet
Configuration
floor
Weight range

600 kg, 1,500 kg, 3,000 kg
(1,322.8 lb, 3,306.9 lb, 6,613.9 lb)

Weighing plate length

800 mm, 1,000 mm, 1,200 mm
(31.5 in, 39.4 in, 47.2 in)

Weighing plate width

800 mm, 1,000 mm, 1,200 mm
(31.5 in, 39.4 in, 47.2 in)

Operating temperature

Max.: 40 °C
(104 °F)

Min.: 0 °C
(32 °F)

Height

Max.: 117 mm
(5 in)

Min.: 112 mm
(4 in)

Weight

45 kg, 47 kg, 49 kg, 64 kg, 73 kg
(99.21 lb, 103.62 lb, 108.03 lb, 141.1 lb, 160.94 lb)

Description

• Suitable for weighing pallets and heavy loads, with a capacity of up to 3,000 kg. • Floor platform with 4 load sensors. • Floor or recessed* Installation. • Highly robust sandwich-type structure, with epoxy treatment. • OIML R-60 class C load cells in nickel-plated steel, IP67 protection. • ABS junction box with IP66 protection. • Height adjustable feet to adapt to surface. • With LED display RX indicator and 400 cm cable.
