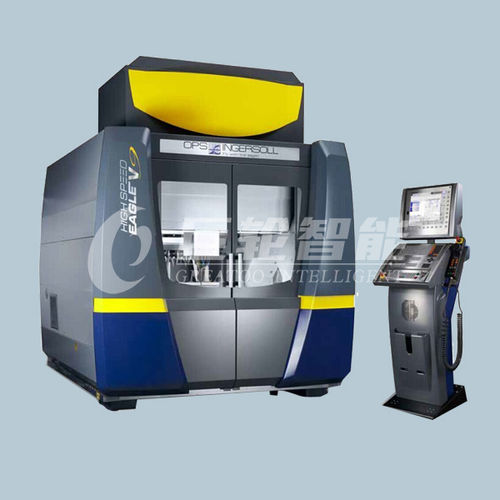

3-axis CNC machining center Eagle V95-axisverticalHSK A-63
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis, 5-axis
- Spindle orientation
- vertical
- Spindle mount
- HSK A-63, HSK-E50
- Number of tool stations
- 48 tools
- Other characteristics
- high-speed, compact
- X travel
800 mm
(31 in)- Y travel
600 mm
(24 in)- Z travel
500 mm
(20 in)- Rotational speed
1 rpm, 18,000 rpm, 26,000 rpm, 36,000 rpm, 42,000 rpm
(6 rad.min-1, 113,097 rad.min-1, 163,363 rad.min-1, 226,195 rad.min-1, 263,894 rad.min-1)- Power
15 kW, 17 kW, 25 kW
(20.39 hp, 23.11 hp, 33.99 hp)- Workpiece max height
500 mm, 550 mm
(20 in, 22 in)- Table load capacity
2,000 kg
(4,409 lb)- Weight
11,500 kg
(25,353.16 lb)- Overall length
3,064 mm
(120.6 in)- Overall width
2,177 mm
(85.7 in)- Overall height
2,850 mm
(112.2 in)
Description
Compact structure while ensuring the largest processing space, the 5 axis 3 axis conversion of the global patent, can be used for large-scale 3 axis automatic processing
Workbench
Type T tank can be loaded on top of fourth / Fifth
T type groove
4x18H12
Numerical control system
Heidenhain iTNC 530 HSCi / TNC 640
Matching
Swing round: B axis +140 degrees /-60 and C axis torque motor 100U/min, workpiece weight: 250kg (or 500kg)
