Hook UXLERT

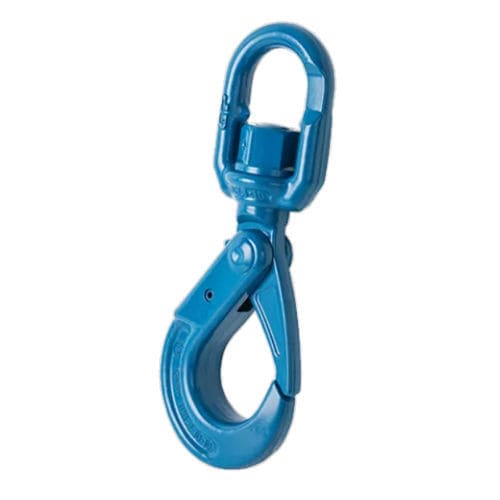

The Green Pin® Self-Locking Hook SE RT is a grade 10 swivel self-locking hook with a recessed trigger. The self-locking hook locks automatically as soon as it is brought under tension. To release the load the user must manually unlock the hook, which prevents unintended release. The trigger has been recessed into the body of the hook to prevent being snatched or damaged. This hook offers complete safety for lifting as the latch cannot be removed. The large eye is supplied with a flat part, which enables easy assembly of wire rope slings with thimbles or chain slings with omega links. These hooks are fitted with a needle roller thrust bearing. This enables smooth, easy rotation under load. The eye of the hook can also be connected to grade 10 chain with a connecting link or to a webbing with a web sling connector. The Green Pin® Self-Locking Hook SE RT is available in a range to suit 8 mm up to 20 mm grade 10 chain. Material alloy steel, Grade 10, quenched and tempered Safety factor MBL equals 4 x WLL Finish painted blue Temp. range -40°C up to +200°C Certification 2.1 2.2 3.1 MPIb DGUV Note equipped with needle roller thrust bearing
