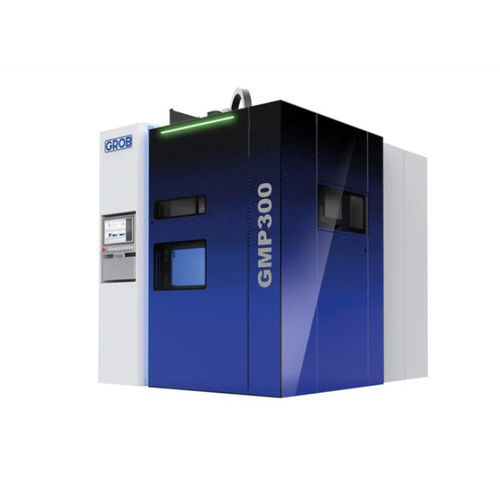

Digital printing machine GMP300

for metalCNC

Innovative, economical & flexible: Thanks to the powder-free manufacturing process, the Liquid Metal Printing machine GMP300 by GROB enables safe and fast production of near-net-shape components. With the GMP300, we offer our customers reliable, efficient and cost-conscious plant technology with maximum production flexibility. Together with you, we develop additive-compatible components and thus unlock the full potential for your production. Construction volume: - - 300x300x300 mm3 - - Positioning accuracy: - - 0,015 mm - - Var. droplet diameter min./max.: - - 0,3/0,85 mm - - Calculated max. build-up rate: - - 199 cm3/h (250 Hz at 750 µm droplet diameter) - - Building panel heating max.: - - 650 °C - - Control system: - - Beckhoff TwinCat Key facts: 3-axis kinematics Max. axis speed: 30 m/min Assembly space with inert atmosphere Processing aluminum alloys Feeding material in wire form Reduced hazard potential due to elimination of powder handling Sensors for process and system monitoring (droplet, nozzle and part height monitoring)
