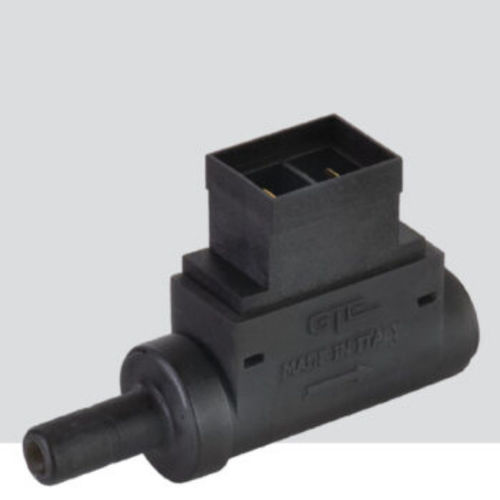

Magnetic flow switch FM

reedfor steamvertical

The FL series has designed to intercept the flow presence by magnetic system contact reed.Magnetic components separated from the electric parts, the last one is possible to replace without removing the component from its installation. echnical data Switching power max - 10 W Switching current - 0,5 A Switching voltage - 100 Vac / Vdc Insulation resistance - 100.000 MOhms Breakdown voltage - 160 / 220 Vac / Vdc Contact resistance - 100 Ohms Capacitance - 0,7 Pf Switch - Normally open (NO) Working position - Vertical Working pressure range - 0 – 15 bar Switching range - ON 2,0 l/min; OFF 1,2 l/min Connection pins tabs - 6,3 x 0,8 mm Water temperature - +2°C to (90°C) Ambiente temperature - -20°C (with antifreeze additive) to +60°C Inlet - Brass G1/2 Grado di protezione / Protection Class - IP00 Peso / Weight - 86 grammi / grams
