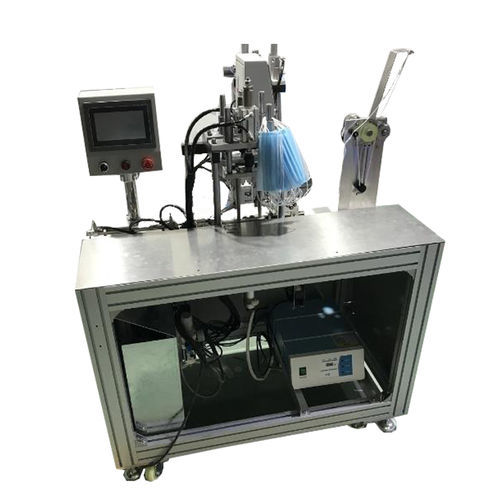

Non-woven production line GDDL500

for masksultrasonicreverse

* This machine inputs raw materials and outputs mask body, which can be processed with spot welding machine to make finished products. * This machine adopts PLC, touch screen control, the main conveyor belt adopts single-phase motor conveying, stepping motor reverse, accurate transmission. * Stable control and adjustable speed. Features: 1. High stability, low failure rate, beautiful appearance and no rust. 2. Computer PLC programming control, servo drive, high degree of automation. 3. Photoelectric detection of raw materials to avoid mistakes and reduce waste. 4. Output: 60 ~ 85 pieces / minute. Finished Product size 17*9.5 cm (according to the requirements) Capacity 60-120 PCS/Min Voltage 220 V Power 3.1 KW Machine Weight 513 KG,One is 360 KG, another is153 KG Machine Size 3380mm*520mm*1850mm (L*W*H) Finished product size 2200mm*900mm*1200mm (L*W*H) Ultrasonic 1 PC Ultrasonic welding flux 3 PCS Non-woven fabric cutting blade 2 PCS Retarder 1 PC Electric Motor 1 PC Knife blade 2 PCS Electronic tape 1 PC Belt 1 PC tungsten wire 1 PC adjustable wrench 1 set Allen wrench 1 set Screwdriver 1 PC Air pressure: 0.5-0.8MPa Welding speed: about 25 pieces per minute (depending on the operator's proficiency in picking and placing pieces) Welder power: Max.2000W, adjustable Welding machine frequency: Max.20KHz, adjustable Equipment size: L1400mm x W700mm x H1350mm weight about 60Kg
