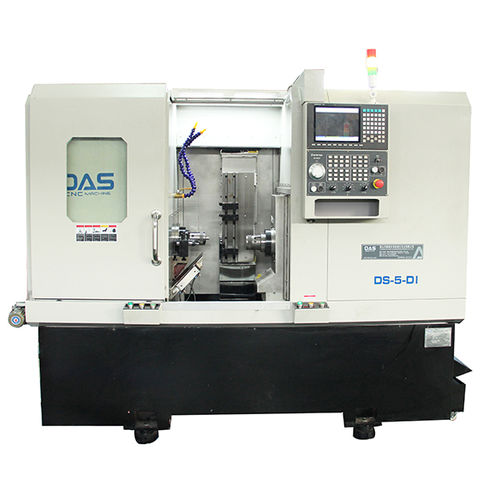

CNC turning center DS-5-DI2-axishigh-precisiondouble-spindle
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Other characteristics
- high-precision, double-spindle, high-rigidity
- Diameter
400 mm
(15.75 in)- Spindle speed
Min.: 0 rpm
(0 rad.min-1)Max.: 4,500 rpm
(28,274.334 rad.min-1)- Maximum part length
150 mm
(6 in)- Axe X
600 mm, 670 mm
(24 in, 26 in)- Axe Z
220 mm, 270 mm
(9 in, 11 in)- Rapids on X
24,000 mm/min
(16 in/s)- Rapids on Z
24,000 mm/min
(16 in/s)- Nominal power
18 kW
(24.5 hp)- Overall lenght
3,000 mm
(118 in)- Overall width
1,700 mm
(67 in)- Overall height
2,100 mm
(83 in)- Weight
4,500 kg
(9,921 lb)
Description
DS-5-DⅠ is a Double Spindle CNC Lathe.The machine tool is equipped with the auxiliary spindle and the auxiliary tool holder,the workpiece can be rotated and docked,the second processing can be working at the same time,which has the advantages of high rigidity and high precision.
Guoqiang Daosheng
The system is equipped with dual-channel function, to achieve simultaneous processing of two spindle, which is exempted from the secondary processing trouble and greatly improves production efficiency
Can be equipped with automatic feeder and product collection device, to achieve fully automated production management
Transmission part adopts Taiwan HIWIN/PMI P3 levels ball screw, and adopt the Type 35 linear guide rail to enhance rigidity
Servo motor for spindle motor, more optimized performance
Accessories imported from Japan and Taiwan
