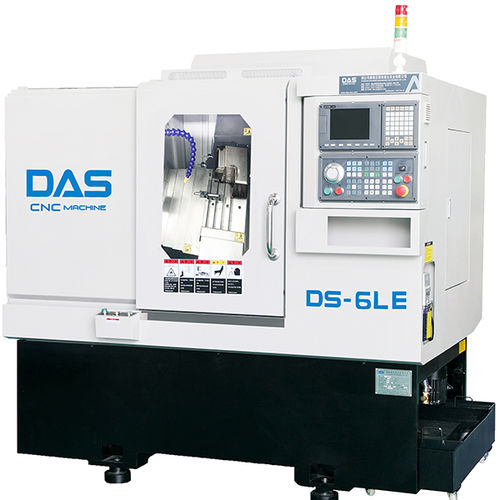

CNC turning machine DS-6LE2-axishigh-precision
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Other characteristics
- high-precision
- Diameter
380 mm
(14.96 in)- Spindle speed
Max.: 4,500 rpm
(28,274.334 rad.min-1)Min.: 1 rpm
(6.283 rad.min-1)- Maximum part length
250 mm
(10 in)- Axe X
1,040 mm
(41 in)- Axe Z
270 mm
(11 in)- Nominal power
12 kW
(16.3 hp)- Overall lenght
2,250 mm
(89 in)- Overall width
1,500 mm
(59 in)- Overall height
1,950 mm
(77 in)- Weight
2,850 kg
(6,283 lb)
Description
DS-6LE is Side or End Milling CNC Lathe with long travel.The unit power head structure has two kinds, the End Milling is 1 with 2 gears type(double short axis).The spindle motor is Taiwan new generation servo motor.It has the high precision and strong vibration resistance.
2.Machine tool bed is casting with resin sand, with the inclination of 45°, easy to operate and remove chips
3.Transmission part adopts Taiwan HIWIN/PMI P3 levels ball screw, and adopt the Type 35 linear guide rail to enhance rigidity
4.Accessories imported from Japan and Taiwan
5.Taiwan controller system, four-axis ; Other brand controller can be chosen
6.Can be equipped with 3×3 or 4×4 integrated Unite power head, realizing the turn-milling combined-type processing, simplifying the processing of complicated product, and reducing the trouble caused by secondary processing and improving product precision
7.Customized precision machining metal lathe projects DS-6LE for sale in hardware processing industry.
