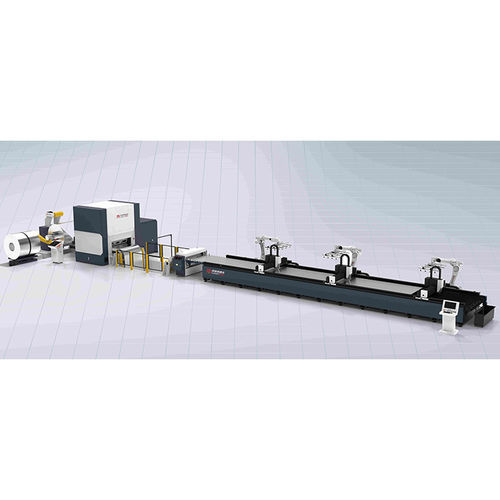

Coil production line

automatedflexiblelaser

Product Overview
This multi-head Kaiping laser cutting and blanking production line utilizes advanced laser technology and a multi-head cutting design to significantly improve production efficiency and cutting accuracy. The equipment supports automated material handling and laser cutting processes, and boasts an intelligent management and operating system, enabling efficient and precise completion of high-volume production. The production line's modular design and intelligent control ensure high production capacity and flexibility, making it widely applicable for plate cutting in various industries.

Technical Features

• Multi-head laser cutting boosts throughput for large-scale production.
• Fully automated processes minimize manual input and enhance monitoring.
• Integrated leveling ensures flatness and ±0.02mm/m cutting accuracy.
• Flexible design supports upgrades and integration of robotic systems.

Parameters and Selection Guide
Parameter | Specification / Options
Acceleration | 1.5g
Maximum Material Weight | 5t–20t (optional)
Positioning Accuracy | ±0.02mm/m
Leveling Accuracy | 0.1–0.5mm/m
Laser Cutting Area | 6015 / 6020 / 8020 / 12020
Bed Platform | Integrated rolling, zoned dust removal, bottom sealing
Maximum Material Width | 2800mm
Leveling Machine Type | CNC type / Wave pressure type
Maximum Material Thickness | 10.0mm
Maximum Feeding Speed | 35 m/min
Laser Power | 2000W–20000W (optional)
Optional Equipment | Laminating machine, sheet peeling suction cup, robot, waste material collection rack, automatic stacking machine

Comprehensive Services and Support

• Pre-Planning: Production demand analysis, layout optimization, and return on investment assessment.
• Installation & Commissioning: Professional teams ensure rapid equipment startup.
• Operator Training: Multi-level training in system operation, programming, and maintenance.
• Remote Diagnostics: 24/7 equipment status monitoring and fault early warning.
• Rapid Response: Nationwide service network with 4-hour technical response.
• Process Optimization: Continuous technology updates to maintain equipment competitiveness.

Applicable Materials

• Stainless steel
• Carbon steel
• Galvanized sheet
• High-strength steel plate
• Aluminum sheet
• Cold-rolled steel coils
• Cold-rolled sheet
• Aluminum-coated galvanized sheet

Applicable Industries

• Elevator Door Panel
• Aluminum Panel Wall
• Ceiling, Doors and Windows
• Car B-pillar
• Medical
• Battery Casing
• Equipment Casing
• Medical Equipment
• Ceiling
• Chassis and Rack

Characteristics / Technical Specifications

• Multi-head laser cutting
• Automated material handling
• Intelligent management and operating system
• Modular design for flexibility
• High production capacity
• Cutting accuracy: ±0.02mm/m
• Leveling accuracy: 0.1–0.5mm/m
• Maximum material weight: 5t–20t
• Maximum material width: 2800mm
• Maximum material thickness: 10.0mm
• Maximum feeding speed: 35 m/min
• Laser power: 2000W–20000W
• Optional equipment: Laminating machine, sheet peeling suction cup, robot, waste material collection rack, automatic stacking machine
