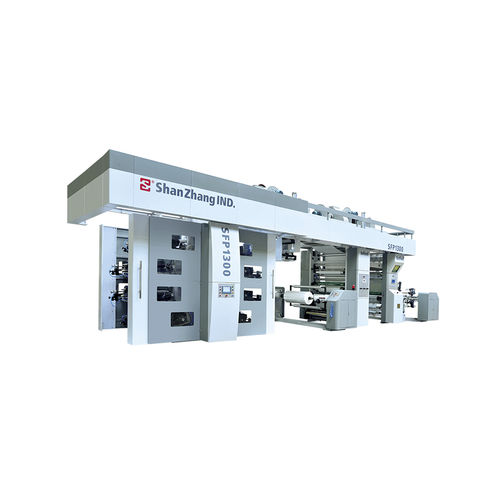

In-line flexographic press SFM-CI series

This SZIND flexo printing press is driven by gear transmission, with registration method by changing driving gear. We have two standard types of gear driven flexo printing presses for you to choose from. If you have specific requirements, custom-engineered flexo printing machine is also available. Standard print width: 800/1200/1600mm (can be customized, Max. 4200mm) SFM-CI-220 Specifications Max. printing speed: 220m/min Roll diameter: 121mm to 261mm Max. repeat length: 380mm to 820mm Tension control precision: ±2N SFM-CI-150 Specifications Max. printing speed: 150m/min Roll diameter: 121mm to 261mm Max. repeat length: 380mm to 820mm Tension control precision: ±2N Configurations Unwind unit 1. The unwind unit has double shafts which are driven by dual-motor, it facilitates operation and saves both material and time. 2. Three pneumatic cylinders are used for web splicing, with closed loop dancer tension control. 3. Designed with functions of initiative unwinding by inverter motor, automatic measuring of the roll diameter, adhesive tape detecting, etc. Rewind unit 1. The rewind unit has double shafts which are driven by dual-motor. Alarm will be activated when presets are reached, and operator is informed to quick change rolls. Automatic closed loop dancer tension control makes that roll changing automatically synchronizes machine speed. 2. By using closed loop dancer roll tension control and equipping with nip roll, the consistency of web tension can be maintained, enabling an optimal roll surface. Infeed nip unit (pull roll station) 1. The infeed nip unit consists of a steel roller and a rubber roller for web pulling.
