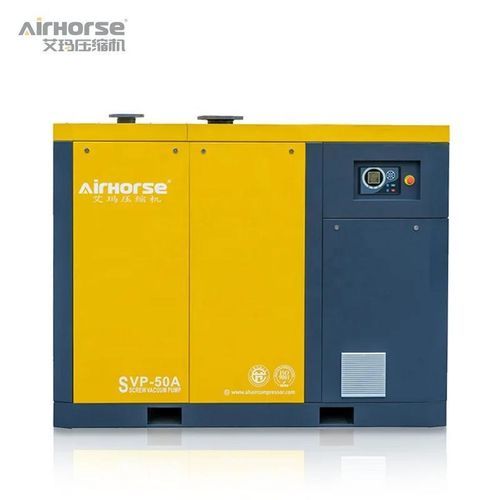

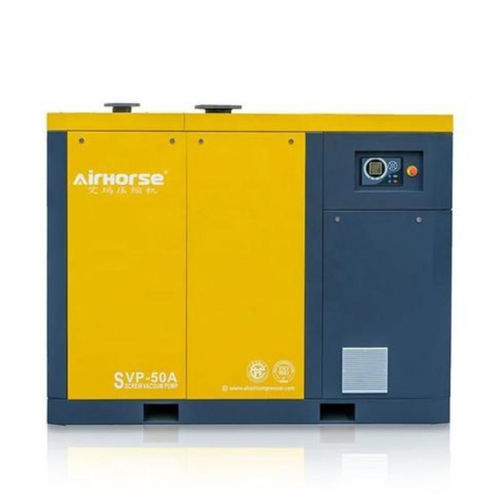

Screw vacuum pump SVPoil-free240VDC480VAC
Add to favorites
Compare this product
Characteristics
- Technology
- screw
- Lubrication
- oil-free
- Supply voltage
- 240VDC, 230VAC, 220VAC, 240VAC, 380VAC, 460 VAC, 400VAC, 575 VAC, 480VAC
- Number of stages
- single-stage, two-stage
- Ultimate vacuum
60 Pa
(0.01 psi)- Flow rate
Min.: 588 m³/h
(20,765.02 ft³/h)Max.: 5,400 m³/h
(190,699.2 ft³/h)- Power
Min.: 7.5 kW
(10.2 hp)Max.: 90 kW
(122.37 hp)- Length
Min.: 1,500 mm
(59.055 in)Max.: 3,800 mm
(149.606 in)- Width
Min.: 880 mm
(34.65 in)Max.: 2,500 mm
(98.43 in)- Height
Min.: 1,460 mm
(57.48 in)Max.: 2,350 mm
(92.52 in)- Noise level
Min.: 62 dB
Max.: 75 dB
- Weight
Min.: 805 kg
(1,774.72 lb)Max.: 5,200 kg
(11,464.04 lb)
Description
AirHorse SVP Series Oil-Lubricated Screw Vacuum Pump
Short Description:
AirHorse SVP series oil-lubricated screw vacuum pump is an innovative industrial vacuum pump combining advanced screw technology, variable frequency drive, IE5 permanent magnet motor and intelligent touch-screen control. It delivers stable vacuum, low noise, low maintenance and average energy savings of 50% compared with traditional oil-lubricated and dry rotary vane vacuum pump technologies. Ideal for glass processing, semiconductor, food packaging, woodworking, tobacco, aerospace and other industrial vacuum applications.
Product Overview:
AirHorse SVP series oil-lubricated screw vacuum pump is designed for reliable, energy-efficient and low-noise industrial vacuum production. Compared with common oil-lubricated and dry rotary vane pump technologies, the SVP series offers better performance, higher efficiency and lower operating costs.
Advanced screw technology, variable frequency control and innovative motor design bring a leap in energy efficiency. The vacuum pump runs quietly, with noise levels much lower than other technologies. Stable efficiency supports sustainable productivity. Under all operating pressures, the SVP series maintains extremely high oil recovery capacity, reducing environmental impact.
The SVP series is compact and easy to install. It is one of the smallest vacuum pump packages on the market and an ideal choice for vacuum machine room installation. All components are assembled in a neat enclosure. The system is plug-and-play.
Maintenance is convenient and infrequent. There are no rotary vanes, no rotary vane vibration and no rotary vane wear. The average maintenance interval is extremely long. The SVP series does not require water. The ultra-intelligent touch-screen vacuum pump control system allows users to monitor operating performance and maintenance requirements at any time.
Key Advantages:
Average energy saving of 50% – compared with traditional vacuum pump technology
High-efficiency screw technology – new-generation screw profile with rotor tooth profile accuracy better than industry standards
IE5 permanent magnet motor – motor efficiency up to 98%, compliant with IEC 60034-30-1:2014 IE5 level
Direct-driven integrated screw air end – no transmission loss, nearly 100% transmission efficiency
Vector VFD control – fast response, high torque, precise vacuum control
Low noise operation – much lower noise than other vacuum technologies
Low maintenance – no rotary vanes, no vane vibration, no vane wear, long maintenance intervals
No water required – suitable for dry vacuum applications
Oil content ≤3 ppm – high oil recovery capacity and lower environmental impact
5,000-hour oil and oil separator maintenance – reduced maintenance cost
Compact, space-saving design – one of the smallest packages on the market, ideal for vacuum machine rooms
Plug-and-play installation – all parts assembled in a neat enclosure
Intelligent touch-screen controller – remote monitoring, WiFi and tandem monitoring options
Stable vacuum – intake pressure sensor feedback and VFD output adjustment ensure stable vacuum degree
Product Features:
Integrated Screw Air End
The air end adopts a new-generation screw profile. Screw rotor tooth profile accuracy is better than industry standards, allowing light-load operation. The twin-screw structure ensures smoother operation and better performance. It has few wearing parts, long air end life, simple maintenance and low maintenance frequency.
The motor is directly driven with no transmission loss and reduced transmission failure. Permanent magnet variable frequency control provides fast response and high torque. The IE5 motor efficiency standard ensures high efficiency.
Special Inlet Valve
Automatically controls the opening angle to ensure oil injection volume and lubricating oil circulation
Super-low oil circuit loss and improved overall efficiency
Normally open solenoid valve control; emergency stop automatically closes to prevent oil injection
Oil and Gas Separation Tank
Better flow rate and structural design
Oil content ≤3 ppm
Convenient maintenance
Oil and oil separator maintenance interval: 5,000 hours
Vacuum Pump VFD Special Control System
Uses well-known brand inverter with wide voltage design
High-performance vector frequency conversion control
Super overload capacity, fast control response and comprehensive motor protection
Intake pressure sensor signal feedback is compared with the inverter set value; output is adjusted to achieve stable vacuum degree and ensure stable production
VFD control reduces frequent loading/unloading, lowers noise, reduces damage to switch accessories and reduces energy consumption
Cooling System
Unique air inlet channel draws air directly from outside, reducing fan starts and fan energy consumption
Motor heat dissipation channel discharges heat directly outside the cabinet, preventing heat retention and achieving lower suction temperature
Lower suction temperature reduces energy consumption caused by compressing high-temperature air
Air inlet channel and motor heat dissipation channel also act as a sound insulation cover to reduce noise
Intelligent Touch Vacuum Pump Controller
Built-in advanced monitoring system specially designed for vacuum pumps. Simple operation, powerful functions and energy saving. Remote monitoring can be configured, and the system can be networked with factory management systems.
Convenient Operation
High-precision color display with clear graphics
Multiple languages available
LED indicator dedicated to maintenance
Fully automatic vacuum pump requiring minimal manual operation
Multiple Functions
Access all daily operation information, including alarms, safety shutdowns and maintenance
Monitoring
Vacuum pump operating status
Running/downtime hours recording
Programmable timer
Temperature/pressure values
Set point control
Remote Monitoring
Optional Ethernet remote monitoring
WiFi Connection
View equipment operation information and operate remotely via mobile phone or computer
Safety
Alarm display, fault and shutdown display
Maintenance
Maintenance operation, remote control (optional)
Tandem Monitoring
Maintenance operation, remote control (optional)
Energy-Saving Performance
The vacuum pump adopts a new-generation screw profile with rotor tooth profile accuracy better than industry standards, operating under light load.
The integrated screw air end structure is directly driven by the motor with no transmission loss, achieving nearly 100% transmission efficiency.
The motor uses high-coercivity, high-temperature-resistant permanent magnets, guaranteeing no demagnetization at 150°C.
Super first-class energy efficiency: motor efficiency up to 98% or more, conforming to IEC 60034-30-1:2014 “Variable Speed AC Motor” IE5 level.
Vector frequency conversion control provides quick response, reasonable current distribution and excellent torque boost.
Infinitely variable speed and wide frequency speed range. Weak magnetic control is twice that of a general permanent magnet motor, making VFD control easy, dynamic response good, large-range rapid response adjustment possible, and precise vacuum degree control achievable.
During operation, the vacuum pump maintains the set point pressure and adjusts motor speed according to site conditions to maintain fixed-point pressure. Compared with traditional technology, energy saving is more than 50%.
The vacuum pump system provides peak performance only when the process requires it, whether during the process cycle, evacuation cycle or machine idling period, ensuring maximum reduction in energy consumption and maintenance costs.
Applications
AirHorse SVP series oil-lubricated screw vacuum pump is widely used in:
Glass processing
Electronic semiconductors
Ceramic bricks
Paper and paper trays
Printing and dyeing
Food packaging
Wood processing
Tobacco production
Bottle and can production
Composite materials
High-altitude simulation
Aerospace industry
Other industrial vacuum applications
Technical Specifications
Model: SVP7-10 | Motor Power: 7.5 kW | Pumping Speed: 588 m³/h | Ultimate Vacuum: 6080 Pa | Inlet / Outlet DN: 65 | Dimensions: 1500×880×1460 mm | Weight: 805 kg
Model: SVP11-12 | Motor Power: 11 kW | Pumping Speed: 768 m³/h | Ultimate Vacuum: 6080 Pa | Inlet / Outlet DN: 100 / 65 | Dimensions: 1850×920×1490 mm | Weight: 1040 kg
Model: SVP15-15 | Motor Power: 15 kW | Pumping Speed: 912 m³/h | Ultimate Vacuum: 6080 Pa | Inlet / Outlet DN: 100 / 65 | Dimensions: 1850×920×1490 mm | Weight: 1040 kg
Model: SVP18-18 | Motor Power: 18.5 kW | Pumping Speed: 1092 m³/h | Ultimate Vacuum: 6080 Pa | Inlet / Outlet DN: 150 / 100 | Dimensions: 2000×1000×1670 mm | Weight: 1280 kg
Model: SVP22-22 | Motor Power: 22 kW | Pumping Speed: 1320 m³/h | Ultimate Vacuum: 6080 Pa | Inlet / Outlet DN: 150 / 100 | Dimensions: 2000×1000×1670 mm | Weight: 1280 kg
Model: SVP30-27 | Motor Power: 30 kW | Pumping Speed: 1620 m³/h | Ultimate Vacuum: 6080 Pa | Inlet / Outlet DN: 150 / 100 | Dimensions: 2300×1120×1827 mm | Weight: 1910 kg
Model: SVP37-30 | Motor Power: 37 kW | Pumping Speed: 1950 m³/h | Ultimate Vacuum: 6080 Pa | Inlet / Outlet DN: 150 / 100 | Dimensions: 2300×1120×1827 mm | Weight: 1910 kg
Model: SVP45-44 | Motor Power: 45 kW | Pumping Speed: 2640 m³/h | Ultimate Vacuum: 6080 Pa | Inlet / Outlet DN: 200 / 150 | Dimensions: 2860×1650×2114 mm | Weight: 3500 kg
Model: SVP55-53 | Motor Power: 55 kW | Pumping Speed: 3830 m³/h | Ultimate Vacuum: 6080 Pa | Inlet / Outlet DN: 200 / 150 | Dimensions: 2860×1650×2114 mm | Weight: 3500 kg
Model: SVP75-75 | Motor Power: 75 kW | Pumping Speed: 4560 m³/h | Ultimate Vacuum: 6080 Pa | Inlet / Outlet DN: 250 / 200 | Dimensions: 3300×2250×2350 mm | Weight: 5200 kg
Model: SVP90-90 | Motor Power: 90 kW | Pumping Speed: 5400 m³/h | Ultimate Vacuum: 6080 Pa | Inlet / Outlet DN: 250 / 200 | Dimensions: 3300×2250×2350 mm | Weight: 5200 kg
Why Choose AirHorse SVP Series Vacuum Pump?
Innovative oil-lubricated screw vacuum pump technology
Average energy saving of 50% compared with traditional vacuum pumps
IE5 permanent magnet motor with efficiency up to 98%
Stable vacuum, low noise, low vibration and low maintenance
No rotary vanes, no water required and oil content ≤3 ppm
Compact, space-saving and plug-and-play design
Intelligent touch-screen control with remote monitoring, WiFi and tandem monitoring options
Widely used in glass, semiconductor, food packaging, woodworking, tobacco, aerospace and other industries
