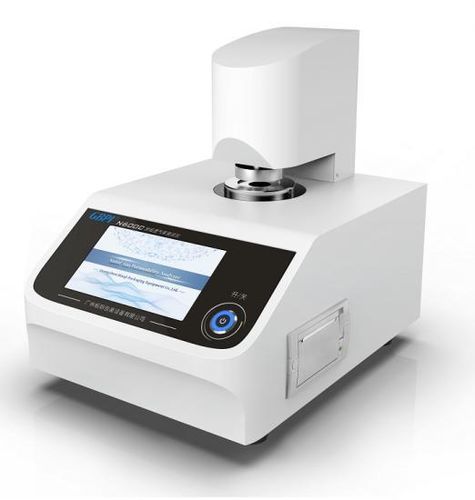

Permeability tester N600C

flowpressureair permeability

Product Brief
The N600C Carbon Paper Air Permeability Rate Tester is designed according to GB/T 20042.7-2014. Using the differential pressure method, it is intended for quantitative measurement of air permeability of carbon paper used in proton exchange membrane fuel cells (PEMFC).

Testing Principle
Using a controlled differential pressure across the sample, gas flows from the high-pressure side through the specimen to the low-pressure side. Permeability is calculated from transmitted flow rate, sample thickness, test area and applied differential pressure.

Executed Standards
GB/T 20042.7-2014

Technical Parameters

• Model: N600C
• Test range: 0~200,000 mL·mm/(cm²·h·mmHg) (0~14,701 mL·mm/(cm²·hr·mmAq))
• Resolution (permeability): 0.1 mL·mm/(cm²·h·mmHg)
• Pressure range: 0~500 Pa (other ranges available on request)
• Pressure resolution: 0.1 Pa
• Pressure accuracy: 0.1% FS
• Flow range: 0~50 L/min (customizable)
• Flow resolution: 1 mL/min
• Flow accuracy: 1% FS
• Test area: 16 cm²
• Instrument dimensions: 410 mm × 295 mm × 365 mm
• Power: 100 W
• Power supply: 110~250 VAC, 50~60 Hz

Product Features

• Adjustable differential pressure within 0~500 Pa with 0.1% FS accuracy to accommodate different sample requirements.
• Test range and pressure/flow ranges can be customized per sample specifications.
• Fully automatic operation with automatic measurement and calculation of results.
• Built-in color touch screen for standalone operation; no external PC required.
• Integrated micro-printer for immediate test report output.
• Host software compliant with GMP appendix "Computerized Systems": hierarchical permissions, audit trail and electronic signature (optional).

Specifications

• Model: N600C
• Standard: GB/T 20042.7-2014
• Test range: 0~200,000 mL·mm/(cm²·h·mmHg)
• Resolution: 0.1 mL·mm/(cm²·h·mmHg)
• Pressure range/resolution/accuracy: 0~500 Pa / 0.1 Pa / 0.1% FS
• Flow range/resolution/accuracy: 0~50 L/min / 1 mL/min / 1% FS
• Test area: 16 cm²
• Dimensions: 410 mm×295 mm×365 mm
• Power: 100 W, 110~250 VAC, 50~60 Hz
