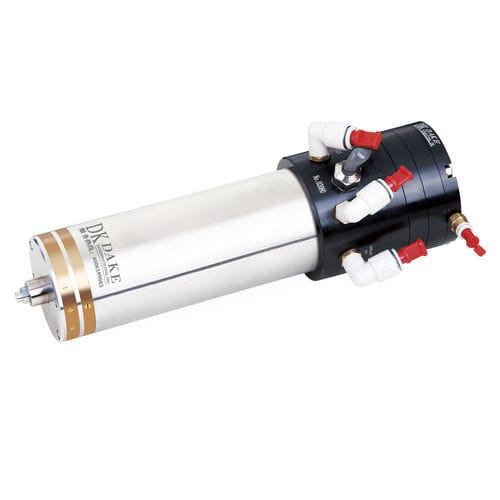

Machining motor spindle DQFX-100A

motorizedwater-cooledoil-lubricated

This product is an air bearing high-speed motorized spindle, with themaximum speed of 100,000rpm. This spindle is used for the high gloss industryfor high-speed and high-speed and high-accuracy machining of materials such asaluminum and its alloy, copper and its alloy, acrylic materials, etc. Underhigh accurate machining conditions, it can achieve a mirror effect with highgloss and clear outline. Performance characteristics 1, long life: the use of gas hydrostatic bearings, non-contact, no wear, long life. 2, high precision: Due to the homogenization effect of gas hydrostatic bearings and up to 0.2um parts machining accuracy, there is a higher static and dynamic accuracy than the ball bearing spindle. 3, high rigidity, low vibration: bearing after precision calculation and unique simulation analysis software verification, with low vibration, high rigidity, high load capacity advantages. 4, high configuration: equipped with high-performance AC induction motor, high torque output, suitable for a variety of processing applications. 5, high reliability: the use of double spiral cooling structure, the spindle to maintain constant temperature processing, the performance is stable and reliable. 6, Automatic cutter change: The product is equipped with the straighthandle chuck so that cutter can be changed automatically. Bearing Type - Air Bearing Maximum Voltage(V) - 200 (S6)Maximum Power(kW) - 0.96 (S6)Maximum Torque(Nm) - 0.12 Chuck Specification - Straight chuck，6mm Form of Lubrication - Air
