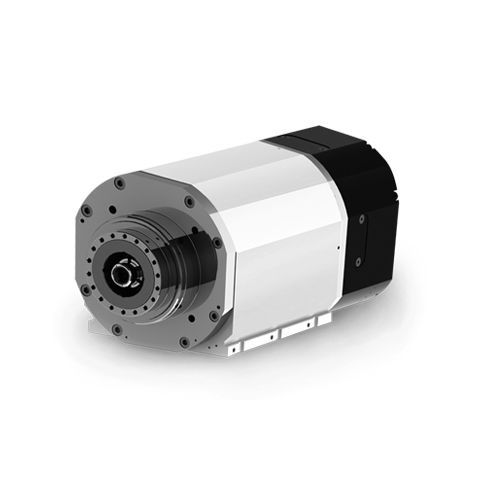

Cutting motor spindle DGZMG-07524/18-KPWCS

engravingmillingmotorized

This product is a high-speed 5-axis special motorized spindle for wood millingand cutting, which is mainly used for an engraving and milling machine or amachining center to drill and mill wood, plastics, aluminum and fiber boards;it cannot be used for machining steel, stone, glass and other materials. Thisspindle is characterized with a compact structure, light weight, small inertia,small vibration, low noise, etc., so it can achieve high speed, high precisionand high operational stability. It is built-in with a three-phase variable frequency asynchronousefficient motor, which is controlled at infinitely variable speeds through aninverter. In addition, its body made of high-strength aluminum reduces theweight of the spindle; the specially designed spiral cooling water channel caneffectively slow down the temperature rise of the spindle. The vibration of the spindle is small and the machining surface effectis relatively good. In addition, the spindle is also characterized with bigpower and torque, small yaw, etc. Features 1.High precision: The total run-out of the shaft end of the motorizedspindle for woodworking in the inner hole is ≤0.002mm; the vibration of thespindle is ≤1.5mm/s; it is characterized with unparallel high precision. 2.High speed: The maximum speed of the motorized spindle for woodworkingis up to 24,000rpm, which can meet requirements for high-speed and efficientmachining. 3.High configuration: As a standard configuration,the motorized spindle for woodworking is equipped with the induction switch forthe spindle release cutter from Germany, temperature sensor, closed-loopcontrol encoder, etc.
