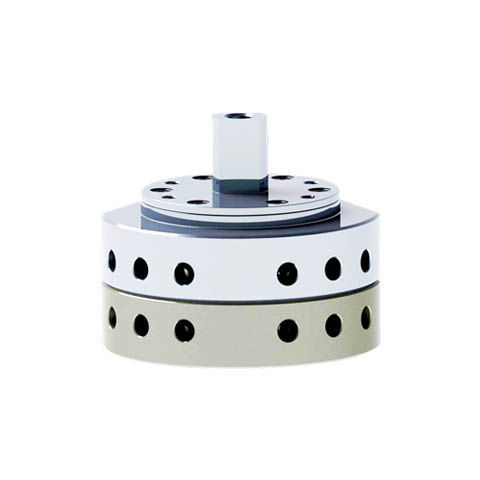

Machining quick change system DKH01-050-R/M

Quick-change module takes 0.1s to clamp and loosen.Significantly improve production efficiency, and flexibility in handling and assembly. Features 1. With slider locking structure, the tapered hole is self-centering and clamped. 2. High repeated positioning accuracy. 3. Small sized, light, reliable clamping. 4. With self-locking in case of gas is disconnected, even if accidental gas is disconnected, the clamped items will not fall. Maximum clamping weight (Kg) - 60 Repeated positioning accuracy (mm) - 0.015 Rated working air pressure (Mpa) - 0.6 Maximum separation distance at clamping (mm) - 0.6 Air hole - 16-G1/8 The Weight (Kg ) - 2.1
