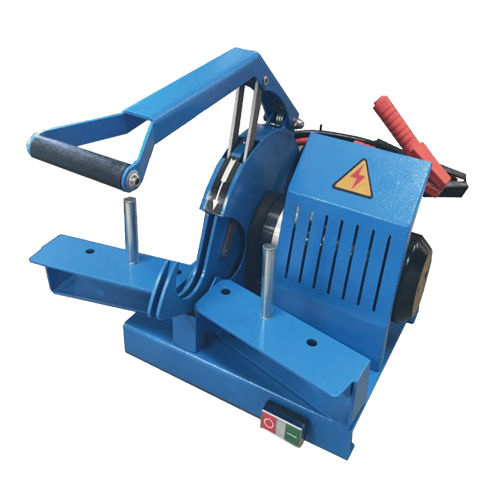

Blade cutting machine YB-C250CSfor hosesfor the automotive industrymanual loading
Add to favorites
Compare this product
Characteristics
- Technology
- blade
- Product handled
- for hoses
- Applications
- for the automotive industry
- Workpiece loading
- manual loading
- Configuration
- compact
- Overall length
500 mm
(20 in)- Maximum width
500 mm
(20 in)- Height
400 mm
(16 in)- Weight
26 kg, 29 kg
(57.32 lb, 63.93 lb)
Description
Yuben C250CS hose-cutting machine has been designed to cut up to 1” diameter 4-spiral hoses. CS-models have been designed for service van use.There are battery powered with 12V or 24V.
Max.hose size(inches) - 1*4SH
Diameter(blade),ext.(mm) - 250*3.5*32
Air power - ____
Motor(kw):DC12V - 1.8
Motor(kw):DC24V - 2.2
Velocity,(rpm) - 2560
Machine (mm) - 500X500X400
Machine (inch) - 19.7X19.7X15.7
Package (mm) - 625X505X510
Package (inch) - 24.6X19.9X20.1
※Toothed Blade (High-speed Steel)
※Toothed Blade (Spanish)
