Column type lifting device ELC-780

column type lifting device
column type lifting device
column type lifting device
column type lifting device
column type lifting device
column type lifting device
Add to favorites
Compare this product


Characteristics

Type
column type

Description

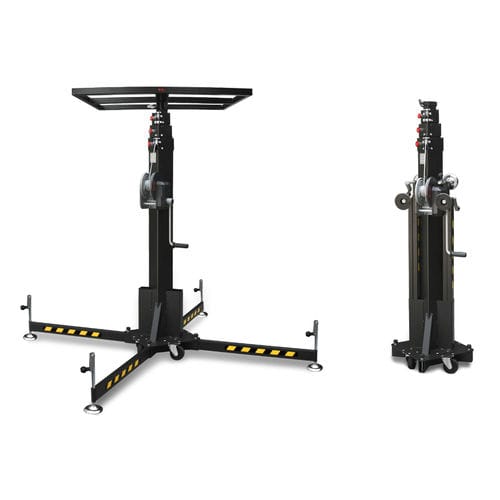

Material lifter ELC-780 Material lift to raise loads of up to 280 kg (617.29 lb) to 5.20 metres (17 ft 0.7 in). DESCRIPTION Telescopic lifting tower specially certified to lift loads of up to 280 kg (617.29 lb) to a maximum height of 5.20 metres (17′ 0.72″). MAST SECTIONS This wind-up stand consists of four telescopic sections made in reinforced steel and finished in a textured, black, anti-scratch, powder coating (Epoxy). This finish makes the tower suitable for outdoor use, guaranteeing maximum corrosion resistance. The masts are equipped with: a.- Oversized welded reinforced ending which strengthens the mast. b.- Internal cushioning system to prevent wobbling of the mast sections when extended (on all four sides). c.- Double resend pulley d.- Pulley protectors which reduce the chance of damage to the pulleys during handling and transportation at the same time preventing the cable from coming out of the pulleys. e.- The top mast comes with a reinforcing ferrule with an ergonomic metallic knob. Base The compact base of 42 x 42 cm (1’4.53″ x 1′ 4.53″), is specially designed to allow access to reduced spaces with the tower. It is equipped with four detachable stabiliser legs, provided with leveller screw jacks that have reinforced nylon spin handles (ergonomic design) with a double-start thread (quicker adjustment) which facilitates the levelling task and chrome foot plates with non-slip injection moulded rubber pads. These foot plates ensure a perfect adjustment of the tower to the floor surface.
