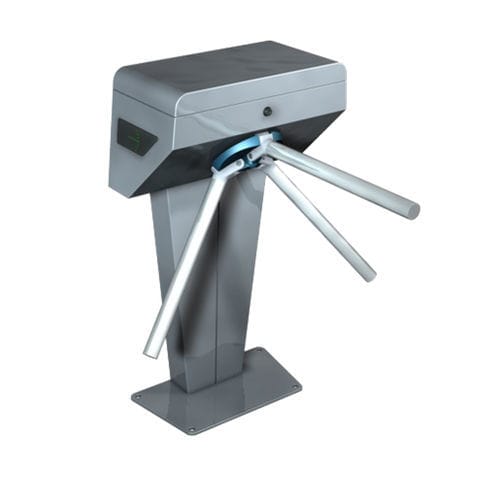

Stainless steel tripod turnstile with a small footprint available as wall-mounted or pedestal version
High Flow Rate
Up to 40 passages per minute
Bi-Directional Passage
Passage in both directions is electronically controlled
Robust and Reliable
Stainless steel construction for years of reliable use
Electro-Mechanical Head Mechanism
• Positive locking action for one passage at a time • Self-centering mechanism to ensure complete rotation into the home position • Anti-backup device to prevent reverse rotation once the mechanism has moved from 60° from home
Power Failure / Fire Alarm
• Either one or both directions can be fail-safe (standard), i.e. rotates freely, or fail lock, i.e. locks in the home position • Fire alarm - emergency input. Input facility available for free voltage contact to effect fail-state • Mechanism fail state will be the same as power failure choice • Drop arm option: the horizontal arm drops to create passage for evacuation • Static hub option: free rotation
Interface
• LL2001Lite microprocessor control logic • One input for opening/locking in each direction • Two protected outputs controlling opening/locking • Four protected outputs piloting way mode indicators • Two protected outputs counting passage in either direction • Two OV output relays indicating availability of use or counting passage in either direction • Two open collector NPN outputs to count passage or to indicate availability of use in either direction or activate the optional drop arm • Features a Serial Port - RS485
