Distance calibration bench T-ALL series

dial indicatordeskscanner

Product subtitle
T-ALL is a workshop-capable bench for setting, presetting and calibration that integrates a patented measuring function for fast in-line checks.

Product overview

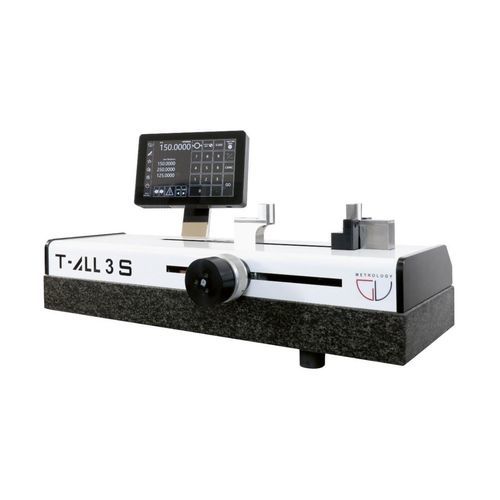

T-ALL upgrades the TR family by adding a preloaded handle that performs measurements during manual operation. It is designed for measuring production samples, manual instruments and masters directly on the shopfloor or in a metrology room.

Suitable for setting internal and external measuring tools, such as:

• Two-point bore gauges
• External micrometers
• Vernier and digital calipers
• Depth gauges
• Dial indicators and comparators
• Measurement of plain and thread gage blocks and master rings

Optional & Accessories

• Floating professional plate for plugs
• Adjustable plate for gage blocks
• Hard-steel anvils (flat or spherical)
• Professional mobile support table
• ILAC / equivalent authority certificate
• Pair of hard-steel anvils
• Barcode scanner for value recall
• Adaptive supports for large instruments positioning

Advantages

• Performs all TR functions plus fast, precise measurements on the shopfloor
• Enables in-house checking and calibration of gage blocks and plugs (plain and threaded)
• Objective measurements thanks to hard-steel anvils and controlled preload

Electronics

• 10-inch touchscreen
• Connectivity to PC via Ethernet/USB
• Data storage and recall of positions (OD + ID)
• Barcode scanner support for quick value recall
• Material/temperature position adaptation

Technical specifications
T-ALL SERIES R
Measuring range ID (mm): 260, 560, 960, 1500, 2000, 3000
Measuring range OD (mm): 300, 600, 1000, 1540, 2040, 3040
Weight (Kg): 75, 100, 180, 450, 650, 1500
Interface: ETHERNET / USB
Max Permissible Error (µm): 3 µm + L/300
Repeatability (µm): 1
Resolution (µm): 1
Working temperature (°C): 10 – 35

T-ALL SERIES S
Max Permissible Error (µm): 1.5 µm + L/500
Repeatability (µm): 0.8
Resolution (µm): 0.5
Working temperature (°C): 10 – 35

T-ALL SERIES P
Max Permissible Error (µm): 1 µm + L/500
Repeatability (µm): 0.5
Resolution (µm): 0.1
Working temperature (°C): 20 ± 1

Characteristics / technical notes

• Function: bench for setting, presetting and calibration with patented measuring function
• Preloaded handle for manual measurement operations
• Operates on internal and external instruments, 2- and 3-point contacts
• Memory of positions and interfacing with PC/printer
• Available options for workshop or lab use (mobile table, certificates, anvils, scanner)
