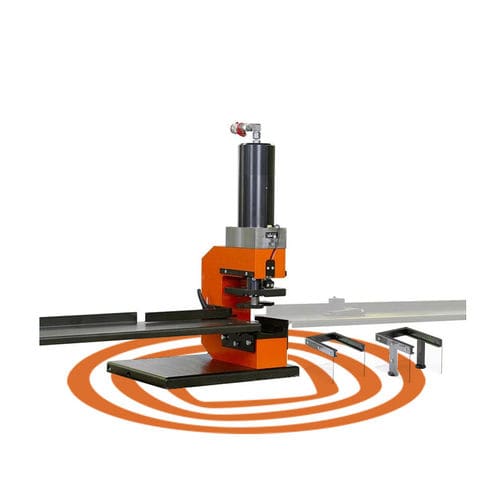

Automatic punching machine AlCu-Press

hydraulicfor aluminum profilescut-to-length

• Combined unit for punching and cutting to length • Very compact design Bow punch mounted on base plate, hydraulically operated for quick and precise punching without pilot holes and for cutting to length Can be connected to the häwa electric or air hydraulic pump For processing solid copper and aluminum material up to a dimension of 12 x 120 mm /0.47x4.72“ Line laser module for easy positioning in X-direction when punching Separate wiper for punching hole series with short hole distance (prevents the workpiece from bulging) With finger guard with wiper function and workpiece support Easy workpiece insertion owing to the C-form of the bow punch Technical data • Can be used for:round punches up to ø 17 mm / 0.67 inch oblong holes up to 13x22 mm / 0.51x0.87 inch • Material:Copper, aluminum • Processing depth:85 mm • Depth stop:Adjustable from 8 to 85 mm / 0.32x3.35” • Max. operating pressure:450 bar • Weight:92 kg • Cylinder stroke:41 mm Notice • For optimum operation, we recommend the use of our 400 V electro-hydraulic pump type 2611-0400-00-00 • Installation and instruction by qualified häwa personnel • Travelling costs according to offer
