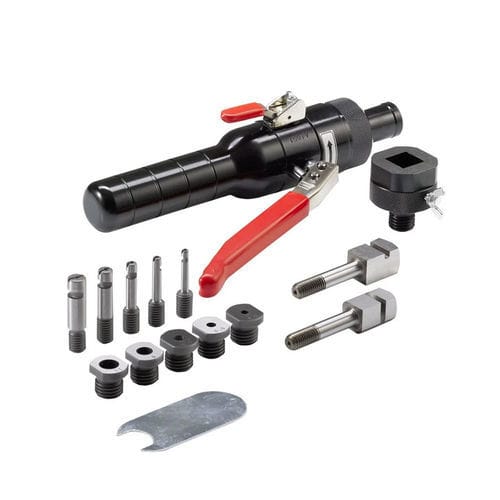

Hydraulic notching tool Powerman Mini

• One-man operation • Burr-free Manually operated hydraulic tool Hydraulic tool with M10 thread for locating the machining tools For a burr-free cut-out enlargement or adaption in sheet steel, stainless steel or aluminum Applications: - Enlargement of ø 4.5; 5.5; 6.5; 9 and 11 mm round holes to oblong holes - Modification of round holes from ø 22 mm to square cut-outs - Enlargement of existing square cut-outs from 17.5 x 17.5 mm Technical data • Article number:2694-7110-01-00 • Can be used for:reworking drillings / cut-outs • Screw holder:M10 draw studs • Punch pump dimension:ø 50x230 mm; ø 1.97"x9.06" • Material:sheet steel, stainless steel, aluminium • MATERIALSTAERKE_DICT:Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga • Weight:1.3 kg • ax. punching forcet:18 kN • Cylinder stroke:5 mm Notice • Scraps remain in the Powerman Mini, allowing the tool to be implemented in spaces where no waste is allowed.
