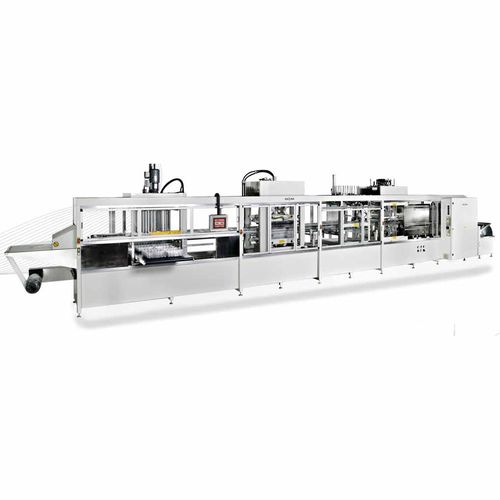

Roll-fed thermoforming machine TVP64 / TVP67
for packagingautomaticvacuum

roll-fed thermoforming machine
roll-fed thermoforming machine
roll-fed thermoforming machine
roll-fed thermoforming machine
roll-fed thermoforming machine
roll-fed thermoforming machine
roll-fed thermoforming machine
roll-fed thermoforming machine
roll-fed thermoforming machine
roll-fed thermoforming machine
roll-fed thermoforming machine
roll-fed thermoforming machine
roll-fed thermoforming machine
Add to favorites
Compare this product


Characteristics

Type
roll-fed
Applications
for packaging
Operational mode
automatic
Other characteristics
vacuum, high-speed
Film width

380 mm, 670 mm (15 in)

Maximum depth of draw

140 mm (6 in)

Forming area x

Min.: 350 mm (14 in)

Max.: 640 mm (25 in)

Forming area y

Min.: 200 mm (8 in)

Max.: 700 mm (28 in)

Description

Automatic vacuum and pressure high performance thermoforming machine with separate stations for thermoforming, die-cutting and vertical stacking of the final product in a conveyor belt. Features Dedicated to the production of medium and long runs. Big working area of 600×700 mm that allows the moulding of pieces of 140/140 mm height (above and below the film line). Roll feeded. Film traction by chain conveyor. Film heating (patented system). Fixed heater equipped with ceramic resistances and a motorized roller shutter in stainless steel that allows to regulate the area of ​​radiation. It improves the initial cycle efficiency after a stop, by avoiding the overheating of the area to be molded. Prevents heat dissipation, reducing electrical consumption. Vertical stacking station “from top to bottom” Simplicity of stacking and adjusting tooling.
