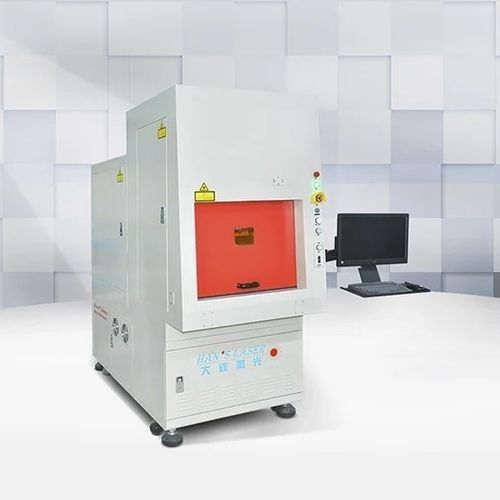

Nd:YAG laser marking machine EP-IRPS-20

ceramicglassmetal

Key features

• Good beam quality and small spot size for ultra-fine marking
• Minimal heat-affected zone to avoid damage to processed materials
• High marking speed with precision and stable long-term operation
• No consumables; low operating and maintenance costs
• Suitable for continuous industrial use

Applications

• Cutting and drilling brittle materials such as glass, sapphire and ceramics
• LCD and OLED panel cutting (C, R, U angle cutting)
• Ultra-precise glass marking for invisible micro QR codes (0.2 mm) and other fine marks
• Traceable marking on metal medical devices (etching/anti-oxidation marking)
• Cutting, drilling or coating removal on plastics, oxides and organics

Technical data
Machine model: EP-IRPS-20
Laser wavelength: 1064 nm
Pulse duration: 10 ps
Laser power: 20 W
Repetition frequency: 1000 kHz
Marking area: 100×100 mm
Marking line width: ≤0.03 mm
Marking depth: ≤0.1 mm
Minimum character size: 0.06 mm
Marking speed: ≤7000 mm/s
Repeatability: ±0.01 mm
Power supply: AC 220 V, 50 Hz, 16 A
Total power consumption: ≤1.5 kW


Characteristics / Technical specifications

• Machine model: EP-IRPS-20
• Laser wavelength: 1064 nm
• Pulse duration: 10 ps
• Laser power: 20 W
• Repetition frequency: 1000 kHz
• Marking area: 100 × 100 mm
• Marking line width: ≤0.03 mm
• Marking depth: ≤0.1 mm
• Minimum character size: 0.06 mm
• Marking speed: ≤7000 mm/s
• Repeatability: ±0.01 mm
• Power supply: AC 220 V, 50 Hz, 16 A
• Total power consumption: ≤1.5 kW
