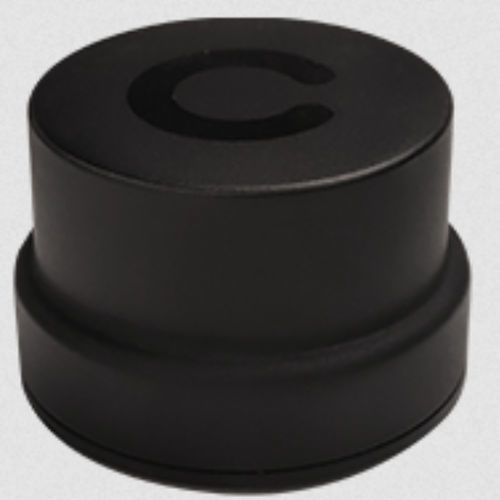

Satellite antenna HX-CUX615A

GLONASSGPSGALILEO

Harxon HX-CUX615A is the housed version of HX-CUX012A, high performance option for UAV as always. It offers superior satellite signal tracking, including GPS, GLONASS, GALILEO, Beidou, QZSS, SBAS, IRNSS as well as L-Band correction service. It provides excellent axial ratios, enables excellent multipath mitigation and a very precise phase center. With low profile design, it is easy to be integrated, ideal for various UAV applications such as aerial photography, remote sensing, infrastructure inspection, traffic control and public security. Key Features Low Profile, Easy to be Integrated HX-CUX615A is designed with a super-low profile (33mm) and lightweight at 43g, making it ideal for integration into UAVs, surveying, and monitoring devices. It reduces overall weight and meets strict low-profile requirements. High Phase Center Stability and Consistent Performance HX-CUX615A utilizes multi-point feeding technology for high phase center stability with centimeter-level accuracy. It offers a peak gain of 3.0 dBi and excellent axial ratios, enabling effective multipath mitigation and precise phase center. Strong Anti-interference Performance HX-CUX615A optimizes circuitry and includes a robust pre-filtered LNA for outstanding out-of-band interference rejection and protection from unwanted electromagnetic interference. Advanced Patented D-QHA Technology HX-CUX615A utilizes patented D-QHA technology for stable wide-angle circular polarization (WACP), ensuring reliable low elevation satellite tracking with high gain. It's an ideal choice for UAVs in challenging environments.
