Satellite antenna HX-CVX608A

GNSSGLONASSGPS

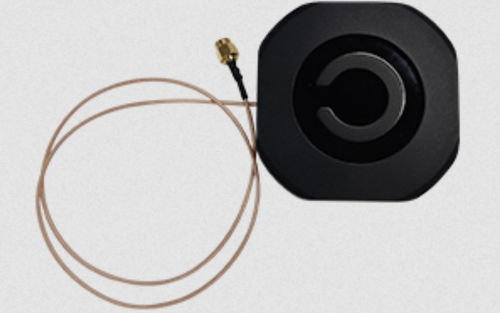

Harxon HX-CVX608A is a high-precision GNSS vehicle antenna, designed for high dynamic applications. It offers superior satellite signal tracking, including GPS, BDS, Galileo, GLONASS, QZSS, IRNSS, SBAS and L-Band correction service. With compact form factor, ruggedized housing, and flexible installations, this product is ideal for unmanned vehicles, vehicle mobile mapping system and mobile laser scanning system solutions, etc. Key Features Compact Form Factor and Lightweight HX-CVX608A is designed into low-profile and compact form factor to minimize damage from overhead objects and reduce wind resistance. It weighs only 180g and features low power consumption, suitable for various autonomous applications. Reliable and Ruggedized Structure The ruggedized housing ensures long lifespan with IP67 protection while using in tough environments such as vibration, harsh weather and high speed travel. Its standard SMA-J connector facilitates easy integration. Both screws mount and magnet mount are supported. Strong Anti-interference Performance HX-CVX608A is equipped with robust pre-filtered LNA which guarantees excellent out-of-band interference rejection performance and restrains unwanted electromagnetic interference. Tracking in Challenging Environments This antenna provides superior multipath rejection and axial ratio, a linear phase response, and tight phase center variation, while protecting against intermodulation and saturation caused by high-level signals.
