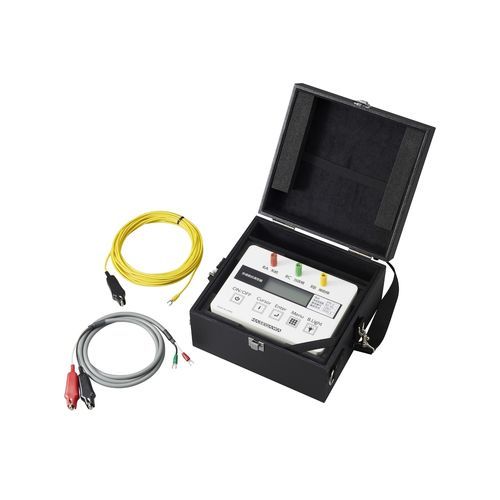

Digital ohmmeter IPR-2

bench-top

Product overview

• Fast and accurate measurement of synthetic resistance for underground lines
• Co-developed with Tokyo Electric Power Grid Co., Ltd.

Overview
Instrument designed to measure synthetic (artificial) resistance for management of grounding where maintaining single-point grounding resistance is difficult. Applying synthetic resistance management can reduce the need for grounding renovation works.

Improvements over IPR-1

• Expanded measurement range to increase applicable cases
• Measurement time reduced by approximately half
• Improved LCD display legibility

Related standards

• JESC E2019(2015) "Connection grounding of iron supports and enclosures of high-voltage apparatus via the shielding layer of high-voltage cables"

Diagrams & display

• Measurement connection diagram (image available on the page)
• Specifications (image available on the page)

Technical specifications

• Application: Synthetic resistance measurement for underground/ buried lines
• Model: IPR-2 (50Hz) / 2B (60Hz)
• Development: Co-developed with Tokyo Electric Power Grid Co., Ltd.
• Main improvements: Expanded measurement range, ~50% shorter measurement time, enhanced LCD visibility
• Applicable standard: JESC E2019(2015)
