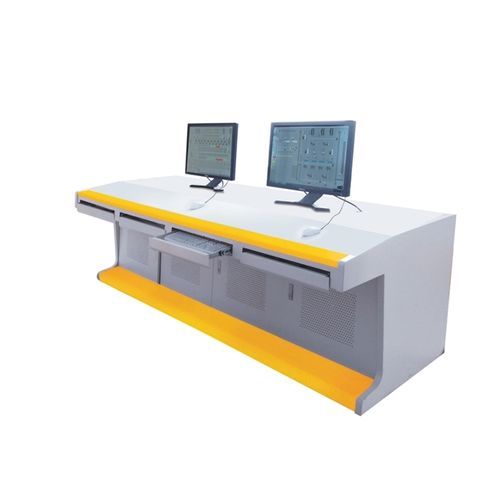

Process automation system

The PLC control system and its control technology have been gradually promoted and applied in the flour processing industry in recent years. Relying on its own advantages, Pingle has established an aubmation research institute and has a professional complete set of PLC control system research and development team. The PLC control system developed by our company has been widely used in large and medium-sized flour processing enterprises and has achieved good market resulb. Pingle PLC control system can realize the whole process management of visualization, dynamic, data informati-zation, standardized management process, and paperless operation documents of the whole processing process. FEATURES Control system compo ition • The control system consists of monitoring computer (host com-puter), prograrnmable logic controller (PLC), switch, motor control center (MCC), field operation box, fieldjunction box, field sensors and oth er major equipment. PLC System Functions •System functions include monitoring functions, operation func- tions and fault alarm functions. •Monitoring function: The graphic operation interface of the control system has the function of displaying process flow, all the equi pments involved and the states need to be displayed are displayed in the system. On the color display in control room, the manual/automatic status, running status, fault status, gate valve position, speed of conveying equipment, process operation, etc.f
