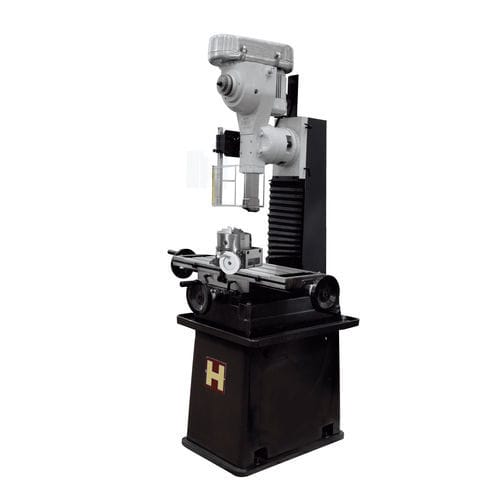

Slotting machine max. 125 mm | HE 125

The maximum ram travel is 125 mm. It has Hz 50 30-47-69-98-140 strokes per minute. It has ± 30º tiltable headstock on both the sides. Ram regulable vertical travel is 0-200 mm. The distance between the end RAM guide and table (A) is 200 - 432 mm while the distance between tool center and the column B is 280 mm. The dimensions of the work table are 815 x 240 mm. The longitudinal work table travel is (X) 400 mm. The Work table cross travel (Y) is 300 mm. The power of the motor is 3 hp. The dimensions are 1050 x 1050 x 1900 (length x width x height) while the weight is 650 kg.
