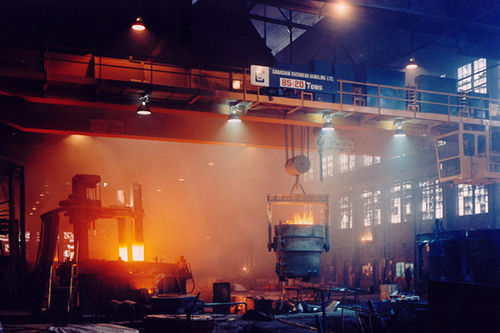

Double-girder bridge crane QDY

for workshopsfor lifting molten metal

•Capacity: 5-74t •Span: 10.5-31.5m •Lifting height: 12-24m •Widely used in: Machinery manufacturing, smelting workshop, thermal processing workshop, etc. QDY bridge foundry crane with hook is mainly used at the place where the molten metal is lifted．The working class of the complete machine is A7，and thermal—protective coating is added at the bottom of the main girder．The assembling and test of the crane conform to the document No.ZJBT[2007]375 which was issued by General Administration of Quality Supervision，Inspection and Quarantine of the People’S Republic of China．The place where molten nonmetal material and red-hot solid metal is lifted also can refer to this document．(note：HO in the be[ow figure is the increased height of buffer of the crane．H0≤250)． Environmental conditions： 1．The power of crane is three—phase AC；rated frequency is 50HZ；rated voltage is 380V； 2．The temperature of working environment is-10~+60℃； 3．The relative humidity is no more than 50％ when the temperature is+40℃； 4．If the requirements are more than above-mentioned，it shall carry out the requirements in the purchase contract as the user asks． Ordering instructions： The basic parameters(rated lifting weight，lifting height and span，etc．)of the crane shall be described clearly when the user orders goods or signs a contract so that the product which may satisfy the working condition can be supplied．
