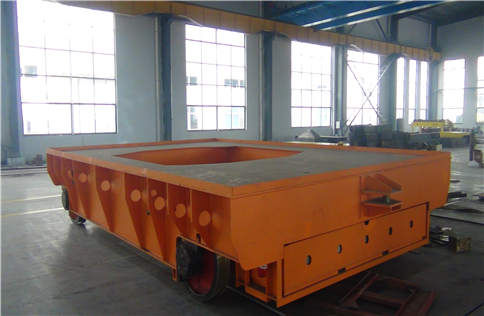

Coil rail transfer car KPDZ series

Coil rail transfer car - KPDZ series - Henan Perfect Handling Equipment Co.,Ltd. - image - 2

Coil rail transfer car - KPDZ series - Henan Perfect Handling Equipment Co.,Ltd. - image - 3

Coil rail transfer car - KPDZ series - Henan Perfect Handling Equipment Co.,Ltd. - image - 4

Add to favorites

Compare this product

Characteristics

Applications: for coils
Carrying Capacity: 2 t, 25 t, 40 t, 50 t, 63 t
(2.2 us ton, 27.56 us ton, 44.09 us ton, 55.12 us ton, 69.45 us ton)

Description

This cargo handling cart is powered by the conductor rail. 380v AC power is step down 36v safe voltage through transformer and separately connect with rails. Then electricity is passed to the cart by wheels . Hydraulic lifting device is installed to facilitate load and unload. ◆ Power supply of low voltage rails ◆ Cast steel 55 wheel ◆ Steel box beam structure ◆ 36v safe voltage ◆ Variable speed from 0 to 20m/min ◆ Products are ISO9001 certified ◆ Safety device such as bumpers, warning light, position switches ◆ Be suitable for middle and long distance transportation ◆ Equipped with PLC program and speed controller
