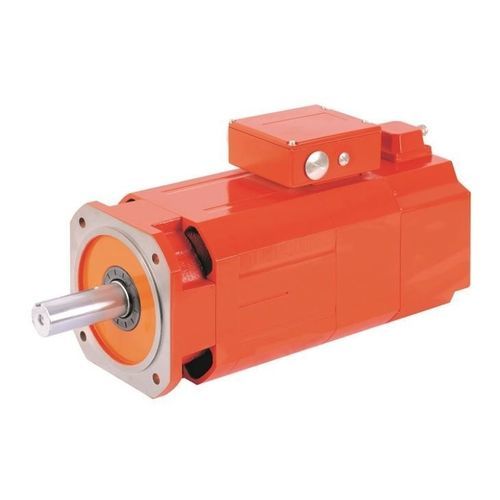

Permanent magnet servomotor STB08 seriesthree-phasebrushless380 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- three-phase
- Type
- brushless
- Voltage
- 380 V
- Protection class
- IP55
- Configuration
- permanent magnet, compact
- Number of poles
- 4-pole, 8-pole, 6-pole
- Cooling mechanism
- air-cooled
- Other characteristics
- low-noise
- Power
Min.: 2.9 kW
(3.943 hp)Max.: 28.3 kW
(38.477 hp)- Intensity
Min.: 5.6 A
Max.: 184 A
- Torque
Min.: 42 Nm
(30.9776 ft.lb)Max.: 370 Nm
(272.898 ft.lb)- Rotational speed
Min.: 750 rpm
(4,712.39 rad.min-1)Max.: 2,000 rpm
(12,566.37 rad.min-1)- Operating temperature
Min.: -15 °C
(5 °F)Max.: 40 °C
(104 °F)
Description
SPM cogging torque permanent magnet brushless synchronous servo motor SPM permanent magnet brushless motors have the following features: 1. Low-noise and high-quality ball bearings. 2. Brushless motor with no spark, no carbon brush, compact structure, high overload ability, long service life. 3....
SPM Cogging Torque Permanent Magnet Brushless Synchronous Servo Motor
SPM permanent magnet brushless motors have the following features:
1. Low-noise and high-quality ball bearings.
2. Brushless motor with no spark, no carbon brush, compact structure, high overload ability, long service life.
3. Motor rotor with rare-earth permanent magnetic field, self-excitation, saving energy, good effect with generating, energy feedback and electric braking.
